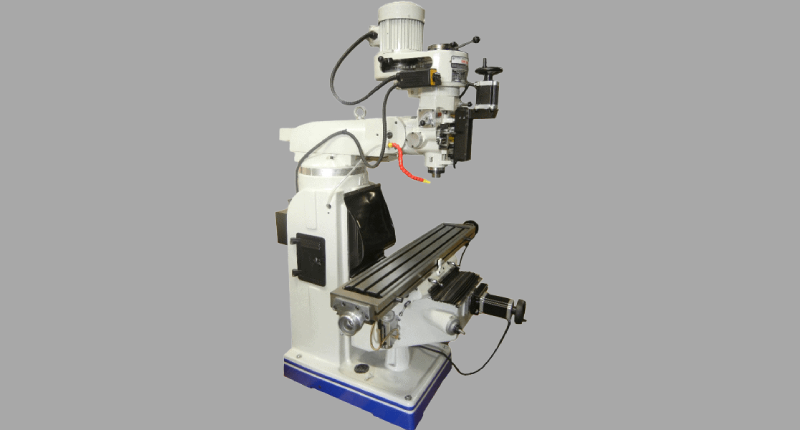

supra cnc milling machine

How to Purchase The Best Milling Machine

Milling machines are among the most commonly used machine tools in modern manufacturing. You’ll find them in complex assembly lines, small tool-and-die shops, and just about everywhere in between. Almost every industry uses milling machines from small mills in high-end scientific labs to machining centers in the automotive industry.

Milling machines are popular with manufacturers and engineers because they help produce more complex parts than the average 3D printer can handle. Consumers also use milling machines at home or in a small workshop.

This guide will give you background on milling machines including types, uses, and features so that you’ll know how to choose a machine that helps you get the results you need. This guide gives you everything you need to buy your milling machine confidently

What is a milling machine used for?

Milling machines are versatile tools designed to machine materials such as metal, plastic, or wood. Mills use various cutting tools including end mills, face mills, and drills. The best mills feature high-quality cast iron construction, variable speed capability, power feeds, and milling cutters that move along the X, Y, and Z axes.

Milling machines perform various operations ranging from slotting, keyway cutting, and drilling to more complex functions like contouring, die sinking, and 3D milling. Milling machines differ from metal lathes by the rotation of the tool rather than the part. Unlike lathe machines, where a workpiece is mounted between the headstock and tailstock and above the bed, most mills fasten the workpiece to the table.

Machinists and machine operators use the milling process to create a range of complex parts and to make precise cuts that are often too challenging for other machining methods. For example, milling machines manufacture engine components in the automotive industry and they craft intricate designs and moldings in the furniture industry.

With the advent of Computer Numerical Control (CNC), milling machines have significantly evolved. CNC milling machines can follow programmed instructions to create parts with incredibly tight tolerances and intricate designs, opening up new application possibilities.

In a nutshell, milling machines are essential tools in manufacturing, offering the flexibility to produce a wide range of products with precision and efficiency. Their versatility and accuracy make them indispensable in many industries from automotive and aerospace to furniture and mold production.

What are the main types of milling machines?

Fundamentally, milling machines fall into two main types based on the orientation of the main spindle: horizontal and vertical. Each type has its specific uses. Vertical milling machines are primarily used for plunge cuts and drilling, while horizontal milling machines perform tasks requiring specific heavy-duty machining. Both milling machine types use rotating cutting tools (end mills, face mills, drills, etc.) spinning at speeds up to 20,000 RPM.

Some machine tools combine elements of a milling machine with other common tools. Small mills certainly aren’t the only variation on the milling machine theme. Here are the most popular types of milling machines and their uses.

Vertical milling machine

Characterized by a vertically oriented spindle axis, vertical milling machines are extensively used in manufacturing industries because of their versatility and precision. The vertical orientation of the cutting tool allows for more complex shapes and unique designs to be machined with accuracy. It enables manufacturers to perform various tasks like keyway cutting, surface milling, drilling, and multi-dimensional contouring. Vertical milling machines are the go-to method for producing surfaces because they are a more efficient way of face milling than grinders, abrasives, and planers. Industries such as automotive, aerospace, and electronics rely on these machines for producing intricate parts and components.

Horizontal milling machines

Horizontal milling machines are also an integral part of the manufacturing industry with a unique design that sets them apart from their vertical counterparts. These machines feature a horizontally oriented spindle that holds cutting tools, allowing chips to fall away more quickly and making these milling machines particularly suitable for heavy-duty tasks and high-volume production. Horizontal milling machines enhance manufacturing productivity and precision because multiple cutters work simultaneously on different surfaces of the workpiece.

Knee mills

Sometimes referred to as a turret mill, Bridgeport-type mill, mill drill, or even a drilling machine, the knee-type vertical milling machine is a highly versatile piece of equipment commonly employed in various industries for its capacity to handle multiple tasks. It can even take the place of a stand-alone drill press. Its defining feature is a vertically adjustable worktable (the “knee”), which provides flexibility in handling different sizes and types of workpieces. This machine can perform multiple operations on the same workpiece including drilling, boring, and milling. The knee-type vertical milling machine’s adaptability to diverse tasks and materials (from metals to plastics) makes it an invaluable asset as a toolroom mill or on the shop floor.

Small milling machines

Also known as benchtop and mini-mills, desktop milling machines are compact yet powerful tools that have considerably expanded manufacturing and prototyping. Most mini-milling machines are vertical mills, making them highly versatile. They carve and shape materials such as wood, metal, or plastic with excellent precision. Ideal for small-scale projects, engineers and hobbyists commonly utilize them to create intricate designs and parts.

These machines can also be used in educational settings, offering students hands-on experience in manufacturing and design principles. They have diverse uses such as producing electronic circuit boards and crafting intricate jewelry designs. Modern mini-mills with CNC technology have increased versatility and even more applications. In the next section, CNC technology will be explained in more detail.

CNC milling machines

Computer Numerical Control (CNC) milling machines are revolutionary devices in manufacturing and prototyping. They utilize a computer-controlled system to automate the complex processes involved in milling which significantly enhances precision, reliability, and speed. These complex 4-axis and 5-axis milling machines feature software and programming that helps “run” the milling machine. Whether a horizontal or vertical machining center, the CNC milling machine features electronic variable speed and coolant systems for prolonged protection. Because it translates computer commands into mechanical motion, CNC milling machines offer unparalleled control over production.

Another remarkable feature of CNC milling machines is their efficiency. Traditional manual milling processes are quite labor intensive and require manual skill. On the other hand, CNC milling machines automate the production process, reducing the need for human intervention and thereby reducing errors. These machines can operate continuously over extended periods to increase productivity.

While CNC milling machines offer numerous advantages, they also require a significant investment of resources including money, time, and personnel, so it’s important to plan wisely. Desktop CNC mills begin around $7,000, and many large mills start in the $150,000 range. Plan time for the learning curve needed to understand programming and operation. Although CNC machines automate milling processes, skilled operators and regular maintenance are required to keep them running efficiently. Despite these challenges, their numerous benefits make them a worthwhile investment for many businesses.

CNC milling machines are the top-end option because they provide a high-precision solution to parts manufacturers. These machines are versatile and can handle various materials including metals like aluminum, steel, plastics, and even wood. This versatility and high precision make them suitable for multiple industries including automotive, aerospace, and electronics where customers demand excellent accuracy and consistency. For more information on these CNC machining centers, please read our guide on CNC machines.

diagram of milling machine parts

Diagram of milling machine parts

What are the parts of a milling machine?

While milling machines come in many varieties, here are the core parts of a milling machine: Motor, Column, Base, Spindle, Monitor, Head, Swivel, and Worktable.

What to consider when purchasing a milling machine

When it comes time to purchase a milling machine, what are the most important things to consider? There’s no one universal milling machine, and every machine will likely be better at some milling operations than others. But before you make your choice, consider these three primary considerations:

Price

A milling machine is an important investment, so you need a basic understanding of the price range for the type of mill you’re investigating.

  • For a hobbyist desktop mill, a solid machine costs roughly $2,500 to $7,500.
  • CNC knee mills start at $15,000 and go up to $75,000.
  • 3-Axis Mills begin around $45,000 and go as high as $100,000.
  • Production mills and lathes are $250,000 and up, depending on size and features. These machines are found in larger shops for machining complex, heavy-duty parts.

Size

The size of the mill determines the type of work it can perform. Clearly, you will need an industrial-sized machining center for a machine that can handle industrial-sized workpieces. Metal fabrication shops handling more significant pieces of metal will want either full-size mills or larger benchtop models. You may want a reinforced milling head on a vertical mill, or you may jump straight to a horizontal mill.

Mini-milling machines are smaller than their full-size counterparts. Some mini-mills are the typical desktop mills, able to handle sizable parts yet small enough to fit on top of a workbench. Other mills fall into the “micro milling machine” category which are tiny mills for intricate or detailed work like jewelry. Most home milling machines fall into this category.

Remember that there’s a stability trade-off with smaller mills. In general, the larger the mill, the more stable it is. Mills can be clamped to the top of a workbench or bolted directly to the floor; the latter is preferable if you need precise and heavy-duty cutting. While clamping your mini mill on top of a bench offers substantially more accessibility and ease of use, it comes at the expense of some stability.

Advanced Features

As you read through the description and list of features for a possible milling machine purchase, you need to hone in on the features that are important for your needs. What features should you look for? Here are a few features that we recommend:

  • Digital readouts (DROs): Digital readouts make a mill much more user-friendly. They’ll also help the operator keep cuts accurate and precise.
  • 3- or 4-axis movement: The more axes of movement, the greater the range of operations possible on the mill. X-axis, Y-axis, and Z-axis movement is the standard. Tools with more axes will likely swivel the cutting tool around the part, engaging it from different angles. Mills with a rotary table allow the workpiece itself to swivel, providing access without re-mounting the part.
  • Cast-iron construction: Cast iron isn’t just sturdy; it’s heavy. Weight on a mini-mill is an advantage. It adds stability and improves precision.
  • Spindle speed and horsepower specs: High-speed spindles and heavy-duty horsepower engines increase drilling and milling capacity.
  • Head tilt: Many mills have geared heads capable of cutting at an angle, adding flexibility.

Precision

For the ultimate in precision cutting, you’ll want a CNC mill. CNC programming allows an operator to program the exact series of operations for the mill to make, creating precise and accurate cuts.

CNC mills can also be more easily integrated with design workflows. A hobbyist might design a custom part on a CAD program, export the vector file to their CNC mini mill, and create a custom program to fabricate his part.

In many situations, however, the task at hand does not require CNC capabilities. Manual mills are less precise, designed for only one operator, and have no computer-controlled movement, making them more affordable than their CNC counterparts. Since adding CNC capabilities will make your new mill considerably more expensive, carefully evaluate whether you need the benefits of the added functionality.

Tips for buying the right milling machine

Now that you know what you need from the milling machine, what should you look for in a suitable manufacturer?

  • Wide product range
    • Look for companies catering to the machinist industry who sell high-quality lathes and mills of all shapes and sizes.
  • Excellent customer support
    • Customer support doesn’t just come after a sale! Reach out to companies for advice who are willing to guide you through purchasing, not just try to upsell a more expensive machine. Also, check the warranty policy for each machine and manufacturer.
  • Detailed specialist knowledge
    • Machine tools include specialist and hobbyist fields such as desktop mills, jewelry machine tools, or DIY. If applicable, look for a company that serves your niche.
  • Quality construction
    • From collet to shank, the best machine tool manufacturers use only the best parts. Look for a company that doesn’t skimp on quality components, and you’ll find one that produces high-end milling machines.

Popular Milling Machine Brands

Even among the best in the industry, certain brands stand out for their quality, durability, and precision, while others are known for their low prices. Ideally you will find the manufacturer with the best combination of high performance, affordability, and service for your needs. The following brands have a strong reputation while serving different industry niches.

  • Jet sells manual mill drills for under $4,000 and manual Bridgeport-type knee mills in the $17,000 to $21,000 range.
  • Grizzly offers lightweight, low-horsepower mills for around $2,000.
  • Wen is another brand you might encounter with mill drills under $2,000.
  • CNC Masters has high-quality CNC knee mills under $15,000, CNC lathes for less than $12,000, and CNC desktop mills starting under $6,000.
  • Haas machining centers are found among mid-price range CNC mills since they provide a cost-effective alternative to higher-priced brands without compromising quality or performance.
  • Okuma has vertical and horizontal machining centers offering precision and flexibility to enhance productivity, reduce downtime, and save money for companies in the manufacturing sector.
  • Mazak offers advanced technology and high-level productivity exclusively for larger corporations willing and able to spend hundreds of thousands of dollars for each machine tool.

Our Choice: The Supra CNC Vertical Knee Mill

cnc supra
CNC Supra Milling Machine

The SUPRA CNC vertical knee mill from CNC Masters will make any shop more productive. This versatile machine works for hobbyists, machine shops, product development, high production work, engraving, and teaching tools in vocational-technical schools and science labs. And if you need a manual mill for a few quick operations, the Supra converts from CNC to manual mode effortlessly.

Look at a few of the specifications for the CNC SUPRA 10×54 Vertical Knee Mill:

  • Table travel (Longitudinal X-axis): 35.5”
  • Saddle travel (Y-axis): 15.5”
  • Knee travel (Z-axis): 18”
  • Table size: 10” x 54”



What do you need to decide before purchasing a milling machine?

Stay focused on these questions as you look at different milling machines:

  • What are your applications for the milling machine?
  • What specifications and capabilities do you require?
  • Do the qualifications of the manufacturer match my needs?

Answering these questions will help you sort through the available features on the various types of milling machines. By using these guidelines as you research, you’ll be well on your way to choosing the best machine for your needs.

FAQs

What is the difference between a milling machine and a lathe?

A milling machine and a lathe are two distinct machine tools often used in the manufacturing industry, each with unique functions and uses. The primary difference lies in how they remove material from the workpiece. A milling machine utilizes revolving cutting tools to shear off material. It can function in multiple axes, depending on the type of machine (vertical or horizontal), enabling it to create a broad range of shapes, slots, holes, and intricate patterns. The operator commands the cutter’s motion and depth to achieve the desired form.

On the other hand, a lathe operates on the principle of rotating the workpiece on its axis against a stationary cutting tool. The workpiece is clamped onto a spindle, which rotates at variable speeds. The cutting tool is moved along the piece, slicing off material to create symmetrical objects, particularly cylindrical or round shapes like cones, cylinders, and spheres. The lathe is ideal for creating objects with a high degree of symmetry but lacks the versatile milling capabilities of a milling machine.

What are the ten different types of milling machines?

Milling machines come in various types, each designed for specific tasks. The most common types include the vertical and horizontal milling machines. Further, we include knee-type milling machines, known for their versatility, and the bed milling machine, characterized by a large working surface. Lastly, we have special milling machines designed for performing specific milling operations that other types cannot carry out.

Here are the ten generally accepted types of milling machines:

  1. Vertical Milling Machine
  2. Horizontal Milling Machine
  3. Universal Milling Machine
  4. Vertical Knee Type Milling Machine
  5. Bed Type Milling Machines
  6. CNC Milling Machine
  7. Tracer Controlled Milling Machine
  8. Column Milling Machines
  9. Duplex Milling Machine
  10. Rotary Table Milling Machine
