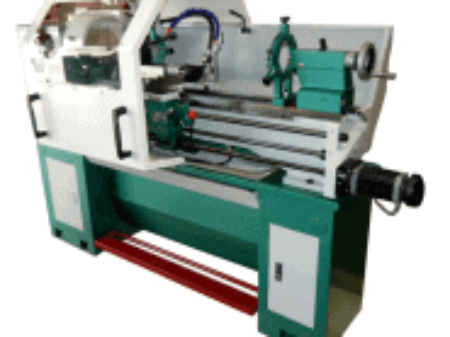

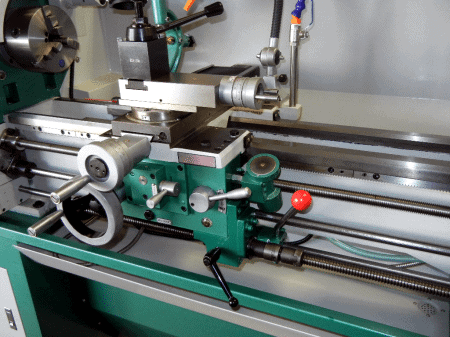

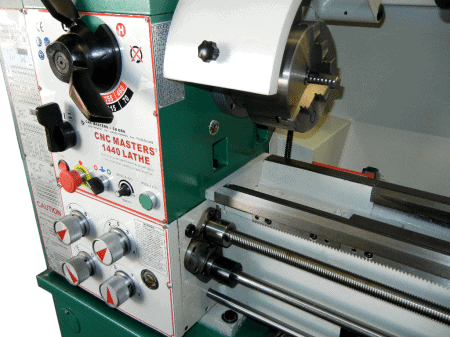

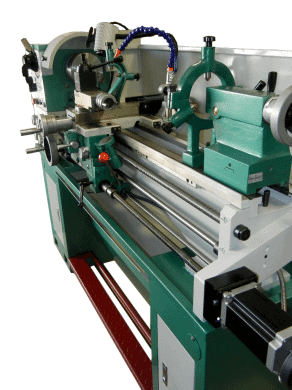

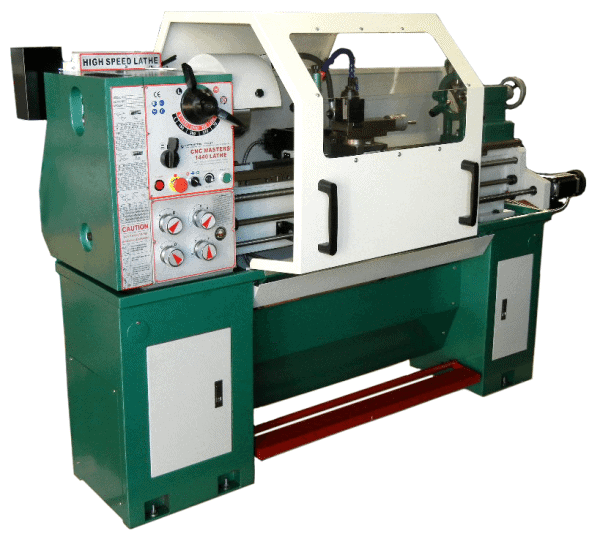

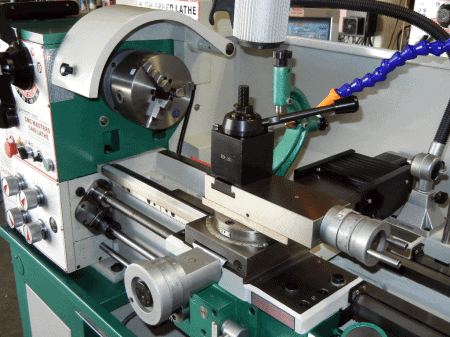

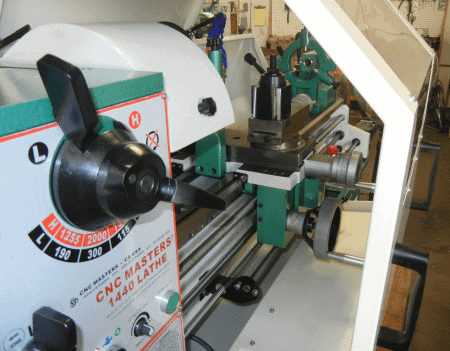

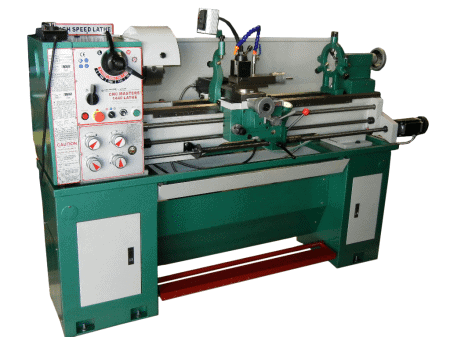

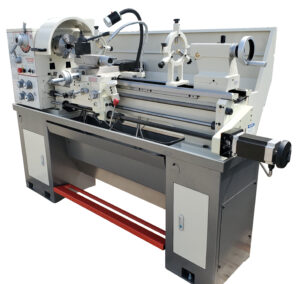

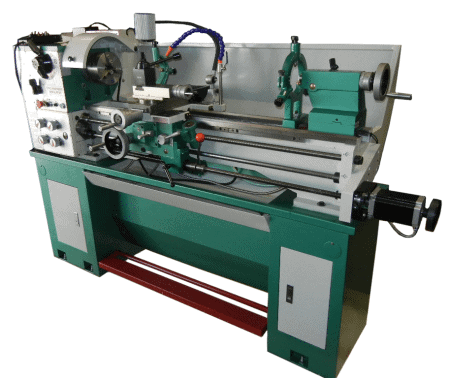

This CNC Lathe will instantly revert back to its manual capabilities eliminating the need to write a CNC program for short runs. Its advanced CNC capabilities can turn any complex turning application into a simple one that can be programmed and executed accurately many times over on production runs. The CNC MASTERS 1440 Lathe is a Gear Head Bench Top mid-size turning center made for primary or secondary CNC machining applications. This 1440 lathe is intended for the user needing the ability and performance of a true CNC working lathe without taking up floor space like larger, expensive CNC machines which require highly skilled trained CNC machinists and service techinicians to tune and maintain the machine for you. Turn, face, chamfer, or machine threads on your part with this CNC Lathe. You can machine just about any application within 14ā³ on the swing or 8ā³ over the cross slide, and 34.5ā³ on the carriage travel.Ā EVERY CNC MASTERS 1440 CNC Lathe Turning Center IS HAND TESTED FOR QUALITY AND PERFORMANCE BEFORE LEAVING OUR MANUFACTURING FACILITY IN IRWINDALE, CA USA
CNC MASTERS 1440 Lathe:Ā Ā Recommended for general turning, chamfering, facing, boring, inside thread and outside thread. Built-In Turn-Key CNC system for true 2 axis X and Z control with computer variable spindle encoder control and safety limit switches. X and Z axis ball screws with pre-loaded ballnuts and motors installed as direct drives. The user-friendly windows Master operating software is included with userās manual. Standard 1440 lathe items also included: Motor Pulley, Backplate for Three-Jaw Chuck, Backplate for Four-Jaw Chuck, 3-Jaw Scroll Chuck, 4-Jaw Independent Chuck, Center Sleeve Bushing MT-5 to MT-3, Change gear for threading (needed for manual option threading only), Tool Post Wrench, 4 Way Tool Post, Steady Rest, Follow Rest, Faceplate 11.75ā³, Machine Stands with Center Kick Plate and Chip Pan. One Year Warranty. Life-long tech support for as long as company owns this equipment. Power requirements: 115vac for controller. 220-240vac, single phase for spindle motor.Ā Ā
Accessories include:Ā
Removable Sliding Splash Guard with Lever Locks.
Wedge-Type Quick Tool Change Tool Post on machined T-Nut with 5 holders.
Computer Control Coolant Pump with hose, container, and flex nozzle.
$11,850.00
$11,850.00Add to Quote
CNC MASTERS 1440 Lathe: Recommended for general turning, chamfering, facing, boring, inside thread and outside thread. Built-In Turn-Key CNC system for true 2 axis X and Z control with computer variable spindle encoder control and safety limit switches. X and Z axis ball screws with pre-loaded ballnuts and motors installed as direct drives. The user-friendly windows Master operating software is included with user’s manual. Standard 1340 lathe items also included: Motor Pulley, Backplate for Three-Jaw Chuck, Backplate for Four-Jaw Chuck, 3-Jaw Scroll Chuck, 4-Jaw Independent Chuck, Center Sleeve Bushing MT-5 to MT-3, Change gear for threading (needed for manual option threading only), Tool Post Wrench, 4 Way Tool Post, Steady Rest, Follow Rest, Faceplate 11.75″, Machine Stands with Center Kick Plate and Chip Pan. One Year Warranty. Life-long tech support for as long as company owns this equipment. Power requirements: 115vac for controller. 220-240vac, single phase for spindle motor.
$10,985.00
$10,985.00Add to Quote
Add any of the following CNC Masters milling machines to your CNC Lathe Deluxe Package for a bundle combo package deal:Ā CNC Supra Milling Machine Deluxe PackageĀ at the listed price. Take off $850.00*!Ā CNC Baron Milling Machine Deluxe PackageĀ at the listed price. Take off $300.00*!Ā CNC Max Milling Machine Deluxe PackageĀ at the listed price. Take off $400.00*! *This combo package āonlyā applies to the above package deals and cannot be combined with any other offer. This deal āonlyā applies to the combined purchase of mill and lathe at the āsame time.ā There are no substitutions.
CNC Accessories

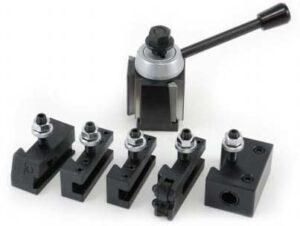

Wedge-type Quick Tool PostĀ with 5 holders Set. Quickly change out your cutters while retaining the cutter edge at the center of your stock. No more need to shimmy and properly align your cutters to the center of your stock with this Quick Change Tool Post. The kit comes to you with a block that you will need to machine into a custom T-Nut to fit the size of your T-Slot
$395.00
$11,850.00Add to Quote

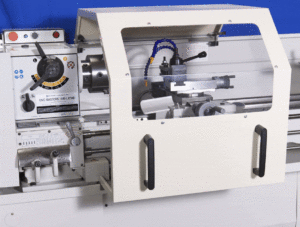

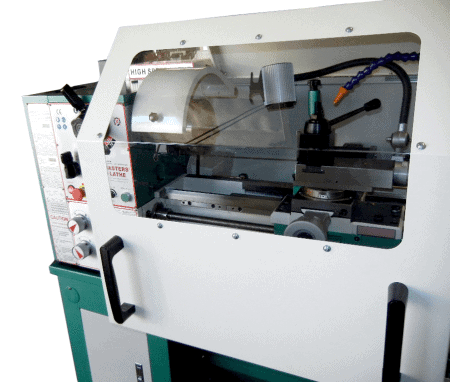

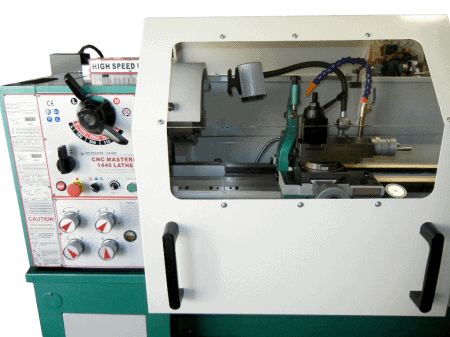

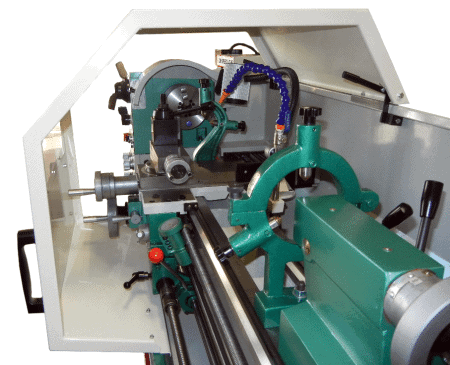

Sliding Splash Guard which can easily be removed or locked into place with two built-in levers. Keep debris and splash enclosed during your CNC lathe operation. 28ā³ long, and plenty of space for parts on a 14ā³ swing.
$354.00
$354.00Add to Quote

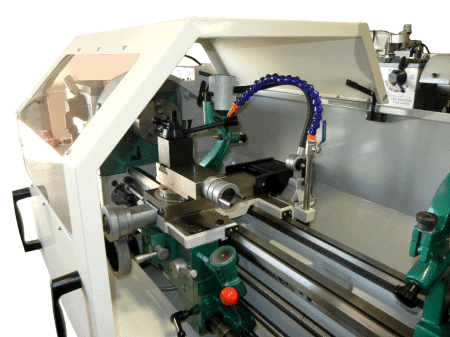

Computer Control Coolant Kit:Ā Keep your cutters from quickly dulling out. Keep debris from welding on your cutters with coolant control. You can operate coolant on/off or through M-codes on the Master operating Software. The submersible pump is built into a tank placed inside the tail stock side cabinet of the lathe stand.Ā A coolant flex nozzle with ball valve for flow control comes mounted to the carriage saddle.Ā The system comes to you with a strainer and hose mounted to the bottom of the lathe chip pan which re-circulates the coolant.
$235.00
$235.00Add to Quote
EXTENDED 2 YEAR MANUFACTURER LIMITED WARRANTY
Add two more years of warranty on top of your first year on your machine’s electronics.Ā See details.
$750.00
$750.00Add to Quote
Software Packages

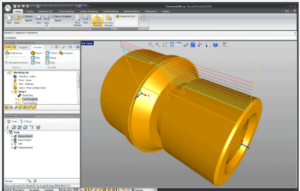

VisualCAD/CAM SoftwareĀ is ideal for the general machinist. This option gives you modeling, milling, and turning all into one software. This product is ideal for production machining (milling and lathe), rapid prototyping where ease of use and powerful tool path generation methods are of paramount importance.Ā Standard Version Includes:
- 2D & 3D Modeling, Mesh modeling
- 2 1/2 Axis Milling
- 3 Axis Milling
- Drilling
- TURN Module ā 2 Axis Turning/Lathe programming module
- ART Module ā Artistic Modeling (Raster to Vector conversion, Pictures to 3D geometryā¦)
- NEST Module ā Parts Nesting (Rectangular and True-Shape Nesting)
- First Year Maintenance included with your purchase from CNC Masters ā this includes ādirect tech support by phone, online connection, and email,ā tutorials, and updates. You can opt to keep the maintenance package for a nominal annual subscription fee after your first year. If you choose not to keep this maintenance package, you still keep the license to your software.
TBA
$1,400.00Add to Quote
