CNC Supra Catalogue

[soliloquy id=”9976″]

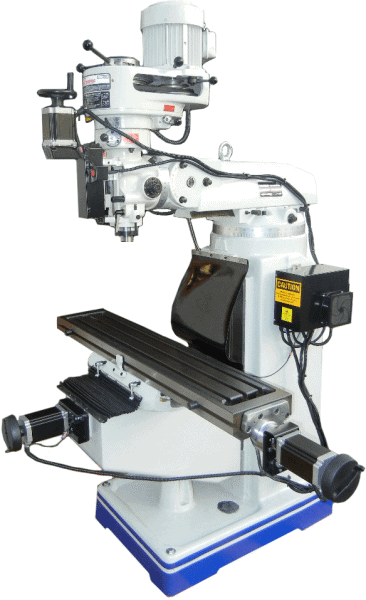

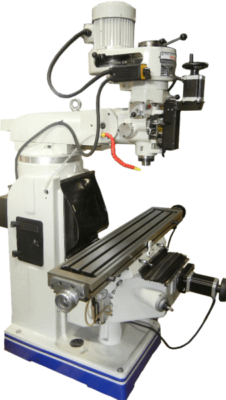

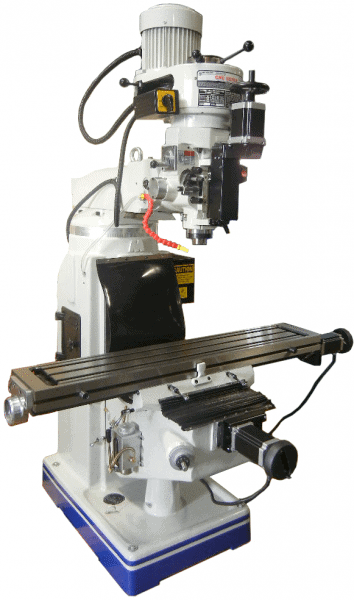

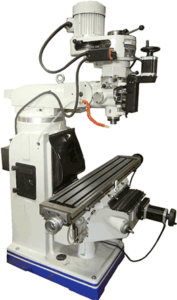

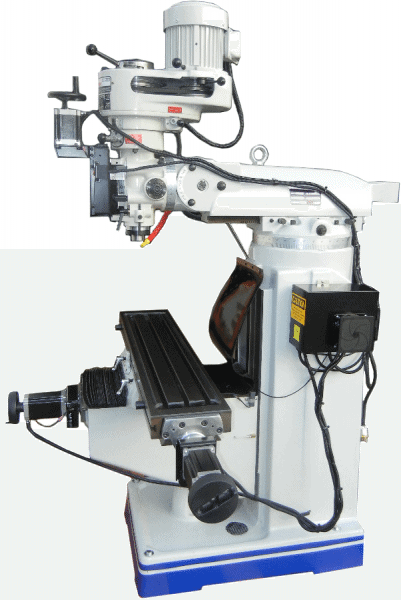

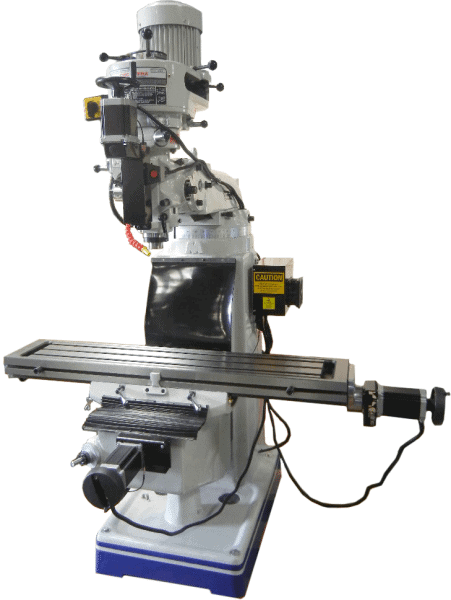

Offered exclusively through CNC Masters, the CNC Supra Vertical Knee Mill is a strong and durable product, and offers the same benefits as a manual-driven Bridgeport vertical knee mill.

With simple-to-learn turnkey operation, this mill is suitable for any beginner machinist, as well as those with more experience who are interested in cutting parts the same day. The innovation and ingenuity of the CNC Supra Knee Mill allows for machining of complex and intricately designed parts through the use of automated technology. It also offers the option of manually machining simple parts by utilizing the hand wheels of the axis.

If you are looking to improve your shopā€™s productivity with ease, look no further than the Vertical Knee Mill. For smaller companies, gain the benefit of machining your own parts at a fraction of the cost of outsourcing. Larger corporations can also benefit from this mill, affording them an alternative to paying thousands for a CNC machine that offers all the best features and capabilities, but not the ability to cut simple parts in a timely fashion.

Interested in conserving your budget and your precious time to start your part-cutting process the day the machine is received? Contact CNC Masters today for a full quote and pricing information on the Supra Vertical Milling Machine, or review our site for more information. We look forward to assisting you!

SAVE YOUR BUDGET, TIME, AND BEGIN CUTTING PARTS THE SAME DAY!

This package is recommended for the user who needs a complete machining system on delivery. The SUPRA DELUXE PACKAGE includes the:

  • CNC SUPRA Vertical Knee-Type Mill 9×49 Table with Variable Spindle Speed Computer Control. Ā Ready to run 3 axis CNC bridgeport-type knee millĀ X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC), 3HP Spindle Motor with variable speed control (requires single phase 240 VAC)
  • User friendly MASTER MX Software with G-CODE file interpreter. Ā Learn more!
  • Built-In Re-Circulating Computer Control Coolant Pump with hose, and flex nozzle
  • 52PC Clamping Set to secure your applications to the table
  • 11 PC R8 Round Collets Set by 16ths to secure your cutters on the spindle
  • 20 PC Titanium Coated High Speed End Mills Set to get you started
  • AV-6″ Precision Milling Machine Vise, full 360 degree swivel base with graduation
  • MX Pendant to easily drive all axes with a touch of a button. Ā Learn more!

$13,535.00

$13,535.00Add to Quote

This package is recommended for the user who needs a complete machining system on delivery. The SUPRA DELUXE PACKAGE includes the:

  • CNC SUPRA Vertical Knee-Type Mill 10Ɨ54 Table with Variable Spindle Speed Computer Control. Ā Ready to run 3 axis CNC bridgeport-type knee millĀ X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC), 3HP Spindle Motor with variable speed control (requires single phase 240 VAC)
  • User friendly MASTER MX Software with G-CODE file interpreter. Ā Learn more!
  • Built-In Re-Circulating Computer Control Coolant Pump with hose, and flex nozzle
  • 52PC Clamping Set to secure your applications to the table
  • 11 PC R8 Round Collets Set by 16ths to secure your cutters on the spindle
  • 20 PC Titanium Coated High Speed End Mills Set to get you started
  • AV-6ā€³ Precision Milling Machine Vise, full 360 degree swivel base with graduation
  • MX Pendant to easily drive all axes with a touch of a button. Ā Learn more!

$16,014.00

$16,014.00Add to Quote

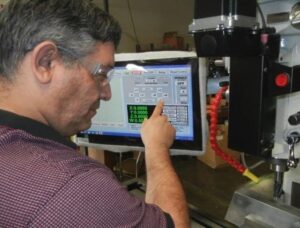

Mount an All in One Touch Screen Computer with MX software installed to your machine

Need a dedicated computer with touch screen to easily drive your machine? We offer the Dell Windows 11 ā€” All In One Touch Screen 19ā€³ Computer and Monitor with Protective Dust Cover and USB connection dedicated to your CNC Masters machine. It will come installed with the MX Software. The computer vesa arm will come mounted to the side of the machine to secure your all in one computer. (COMPUTER IS WIRED FOR 110 VOLTS ONLY.) Learn more!

Ā

$1,885.00

$1,885.00Add to Quote

Add a Keypad Pendant to Your CNC Mill Order

ThisĀ MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.Ā  The pendant communicates directly to the MX Software.Ā Ā Click here for more details.

$250.00

$250.00Add to Quote

CNC SUPRA Vertical Knee-Type Mill 9Ɨ49 Table with Variable Spindle Speed Computer Control:A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 3HP with variable speed control (requires single phase 240 VAC)

$12,483.00

$12,483.00Add to Quote

CNC SUPRA Vertical Knee-Type Mill 10Ɨ54 Table with Variable Spindle Speed Computer Control:A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 3HP with variable speed control (requires single phase 240 VAC).

$14,962.00

$14,962.00Add to Quote

Need a dedicated computer with touch screen to easily drive your machine? We offer the Dell Windows 11 ā€” All In One Touch Screen 19ā€³ Computer and Monitor with Protective Dust Cover and USB connection dedicated to your CNC Masters machine. It will come installed with the MX Software. The computer vesa arm will come mounted to the side of the machine to secure your all in one computer. (COMPUTER IS WIRED FOR 110 VOLTS ONLY.) Ā Learn more!

Ā

$1,885.00

$1,885.00Add to Quote

CNC SUPRA Vertical Knee-Type Mill 9Ɨ49 Table:A ready to run 3 axis CNC bridgeport-type knee mill, user friendly MASTER Software with G-CODE file interpreter, X, Y, Z ball screws with pre-loaded ball nuts, and the CNC Control Unit (Control Unit 115 VAC) 2HP single phase 8 speeds (requires single phase 220 VAC)

10,923.00

$10,923.00Add to Quote

CNC Accessories

Individual Pieces, More Accessories and Kits:

Ā

Fourth Axis 6ā€³ CNC Rotary Table, made to work with the CNC Supra Milling Machines. The Driver will be built into the CNC Control Unit and operated by the Master Software. Ā Click here for more details.

$1,498.00

$1,498.00Add to Quote

ThisĀ MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.Ā  The pendant communicates directly to the MX Software.Ā Ā Click here for more details.

$250.00

$250.00Add to Quote

With theĀ MX Digital Probe you can duplicate artsy type 3D applications.Ā  The probe will scan over your part while recording a tool path program for it.Ā Ā Click here for more details.

$379.00

$379.00Add to Quote

Stainless Steel 1/2ā€³ MX Electro Edge Finder and 1/4ā€³ Touch Plate.
Easily locate the edge of any metal piece.
Record this offset position for any tool size.
Find the corner. This Edge Finder, with a couple of clicks, will automatically touch each wall and will find center line of your corner.
Use it to locate that edge or center of an inside pocket.
Low profile touch plate. Drive the cutter down to the touch plate and the Z axis will offset the touch plate giving you a perfect Z0.0 kissing the top of your part every time.
Zeroing has never been easier with the MX Software that comes with your CNC Masters Machine.
Find the edge of circular or rectangular parts ā€” inside or outside, no problem.Click here for more details.

$385.00

$385.00Add to Quote

Rigid Tapping Add-On
No need for tapping head attachments or spending several man hours tapping by hand when you can let your CNC Masters milling machine do it for you. Create your tapping programs up to 1/2ā€³ or 12 mm diameter holes.
Click here for more details.

$898.00

$898.00Add to Quote

Need a dedicated computer with touch screen to easily drive your machine? We offer the Dell Windows 10 ā€” All In One Touch Screen 19ā€³ Computer and Monitor with Protective Dust Cover and USB connection dedicated to your CNC Masters machine. It will come installed with the MX Software. The computer vesa arm will come mounted to the side of the machine to secure your all in one computer. (COMPUTER IS WIRED FOR 110 VOLTS ONLY.)Ā Learn more!

$1,855.00

$1,885.00Add to Quote

CNC Supra Engraver Attachment with 1/8, 5/32, and 1/4 collets for Engraving or Fine Machining Detail which attaches to the Quill of CNC Supra Mill only. 30,000 RPMs (requires 110VAC)ā€¦.

$575.00

$575.00Add to Quote

Engraving Attachments
ā€œAIR TURBINEā€ Air Driven Spindle with 40,000 RPM, for jewelry, mold making, and fine engraving/detailing (requires air compressor 90 psi) Attachment in: 1/4ā€³ collet w/3/4ā€³ shank
Air Spindle comes with Oil Trap Assembly and Case. Ā Ā Click here for more details.

$4,500.00

$4,500.00Add to Quote

CNC Supra Coolant Kit which includes computer control pump, tubing, flex nozzles mounted to the side of the machine head.Ā  Coolant re-circulates.

$349.00

$349.00Add to Quote

JT33 Classic Drill Chuck with R8 collet attached.Ā  Chuck Key included.

$48.00

$48.00Add to Quote

EXTENDED 2 YEAR MANUFACTURER LIMITED WARRANTY

Add two more years of warranty on top of your first year on your machine’s electronics.Ā  See details.

$750.00

$750.00Add to Quote

Quick Change Tool

by Royal Products
Improve your production time.Ā Ā Learn More.

Quick Change Master Holder
$1270.00

$1,270.00Add to Quote

Easychange End Mill Holder, bore size 1/8″

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 3/16ā€³

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 1/4ā€³

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 3/8ā€³

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 1/2ā€³

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 5/8ā€³

$396.00

$396.00Add to Quote

Easychange End Mill Holder, bore size 3/4ā€³

$419.00

$419.00Add to Quote

Easychange Drill Chuck Adapter for J33 chuck

$334.00

$334.00Add to Quote

Easychange Drill Chuck Adapter for J2 chuck

$334.00

$334.00Add to Quote

CNC Accessories

52PC Clamping Set: 5/8ā€³Ā for the CNC Mills includes:

  • 24 Studs (4 of each): 3ā€³, 4ā€³, 5ā€³, 6ā€³, 7ā€³, 8ā€³ long
  • 4 Coupling units
  • 6 Flange nuts
  • 6 Forced steel clamps, 2 each based on stud sets
  • 6 T-Nuts
  • 6 Steel step blocks
  • 1 Wall Rack

$88.00

$88.00Add to Quote

11 PC R8 Collet Set
Range in size from 1/8ā€³ to 3/4ā€³ by 1/16ths.

$99.00

$99.00Add to Quote

20 PC Titanium Coated End Mills Set

  • TIN coated for longer lasting
  • High Speed steel
  • Center Cutting, single end
  • Complete with wooden case.
  • 10pcs: 2 flute 3/16ā€³-3/4ā€³ by 16ths
  • 10pcs: 4 flute 3/16ā€³-3/4ā€³ by 16ths

$137.00

$137.00Add to Quote

Easy Knee Lift Adaptor: A low cost alternative to a built-in power feed knee lift on your CNC SUPRA Mill.

$89.50

$89.50Add to Quote

Software Packages

VisualCAD/CAM SoftwareĀ is ideal for the general machinist. This option gives you modeling, milling, and turning all into one software. This product is ideal for production machining (milling and lathe), rapid prototyping where ease of use and powerful toolpath generation methods are of paramount importance.

Standard Version Includes:

  • 2D & 3D Modeling, Mesh modeling
  • 2 1/2 Axis Milling
  • 3 Axis Milling
  • Drilling
  • TURN Module ā€“ 2 Axis Turning/Lathe programming module
  • ART Module ā€“ Artistic Modeling (Raster to Vector conversion, Pictures to 3D geometryā€¦)
  • NEST Module ā€“ Parts Nesting (Rectangular and True-Shape Nesting)
  • First Year Maintenance included with your purchase from CNC Masters ā€” this includes ā€œdirect tech support by phone, online connection, and email,ā€ tutorials, and updates. You can opt to keep the maintenance package for a nominal annual subscription fee after your first year. If you choose not to keep this maintenance package, you still keep the license to your software.

TBA

$2,500.00Add to Quote

Upgrade to Expert mode 4th Axis CAMĀ will allow indexing and continuous roughing and finishing operations to VisualCAD/CAM STD. Curve based continuous machining such as 4 Axis Facing, Pocketing, Profiling & Engraving as well as Surface/solids/meshes based machining such as Roughing, Finishing and Curve Projection machining are available for your CNC Masters Milling Machine. The EXP configuration also includes TURN, NEST and ART modules free of cost! Needless to say, direct tech support is also included with your purchase.

TBA

$1,400.00Add to Quote
