CNC MAX Machine Catalogue


CNC MASTERS presents the ALL NEW CNC MAX to our line of CNC milling machines! It’s specifically designed for the machinist who needs it all WITHOUT TAKING UP THE SPACE and BREAKING THE BANK! IT’S TURN-KEY, EASY TO LEARN, AND EASY TO OPERATE!

The CNC MAX machine and controller are built to stock in-house in the USA. We do not buy and re-sell our CNC Driving System. So we’ll never bounce you to a third-party vendor for limited support to either their controller or another vendor’s machine.
WE SUPPORT THE COMPLETE CNC Max MILLING CENTER INCLUDING ITS OPERATIONAL SOFTWARE BY PHONE OR EMAIL.

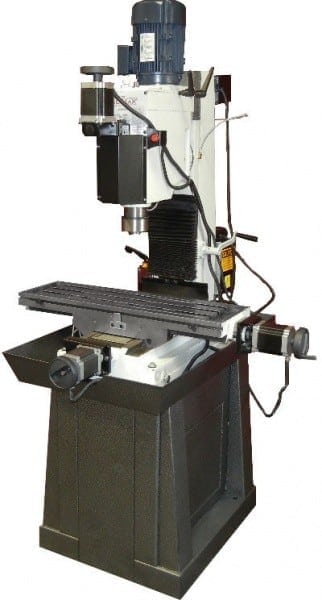

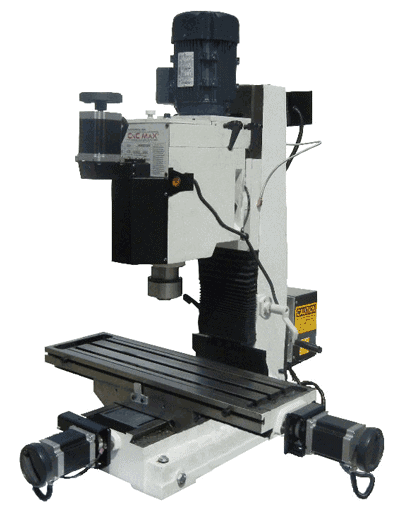

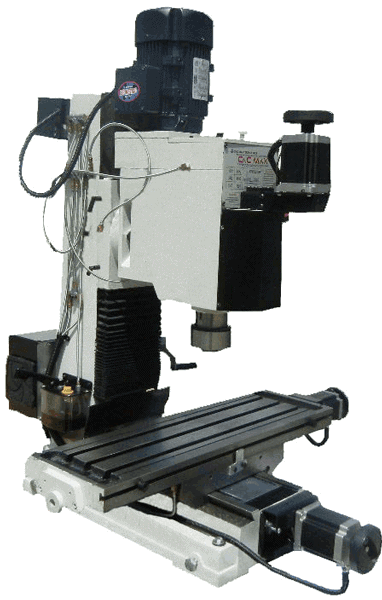

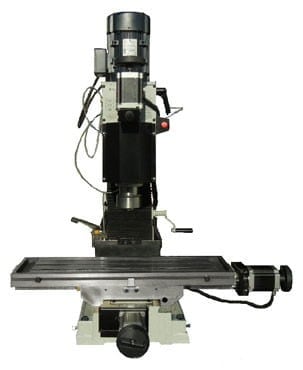

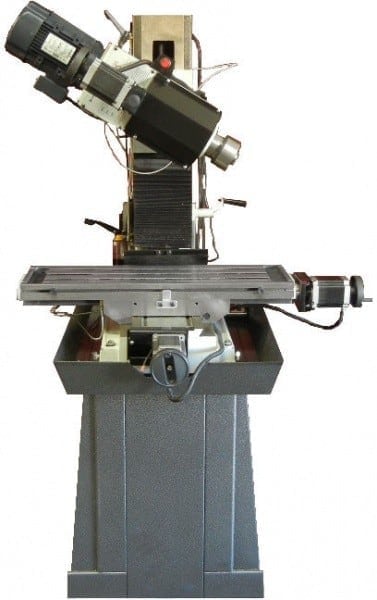

CNC MAX DOVETAIL COLUMN TABLE TOP MILL 3 AXIS CONTROL W/MOTORS (115VAC) W/COMPUTER VARIABLE SPINDLE (2HP) CONTROL (220VAC, SINGLE PHASE), HANDWHEELS, X/Y/Z BALLSCREWS W/PRE-LOADED NUTS, HOMESWITCHES, ONE-SHOT OIL LUBE, MASTER MX OPERATING SOFTWARE, AND USER’S MANUAL.

Full Description& Specs

$7275.00

$7,275.00Add to Quote

Add a Quick Change Tool Set

Streamline your production time with the Royal Products Quick Change Tools Set.  Learn more!  Set includes: One Master Holder, and any four end mill holders, mix or match. (To add to the set for additional holders and larger sizes, scroll further down.)

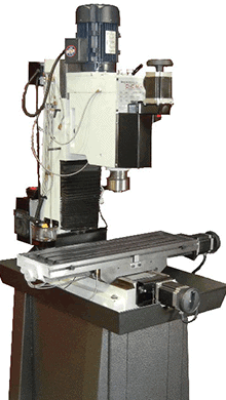

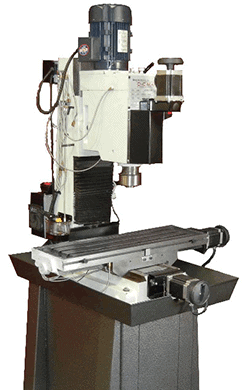

This package is intended for the user who needs the basic tooling that belongs with every milling machine.CNC MAX DOVETAIL COLUMN TABLE TOP MILL 3 AXIS CONTROL W/MOTORS (115VAC) W/COMPUTER VARIABLE SPINDLE (2HP) CONTROL (220VAC, SINGLE PHASE), HANDWHEELS, X/Y /Z BALLSCREWS W/PRE-LOADED NUTS, HOME SWITCHES, MANUAL LEVER ONE-SHOT OIL LUBE, MASTER MX OPERATING SOFTWARE, AND USER’S MANUAL.

Included Accessories:

  • Built-In Re-Circulating Computer Control Coolant Pump with hose, and flex nozzle
  • 52PC Clamping Set
  • 11 PC R8 Round Collets Set by 16ths
  • 20 PC Titanium Coated End Mills Set
  • Reinforced Max Machine Stand with Deep Chip Pan and Storage with Latched Door

Full Description& Specs

$8,120.00

$8,120.00Add to Quote

Add a Quick Change Tool Set

Streamline your production time with the Royal Products Quick Change Tools Set.  Learn more!  Set includes: One Master Holder, and any four end mill holders, mix or match. (To add to the set for additional holders and larger sizes, scroll further down.)

Add a Keypad Pendant to Your CNC Mill Order

This MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.  The pendant communicates directly to the MX Software.  Click here for more details.

$250.00

Individual Pieces, More Accesories and Kits:

Fourth Axis 6″ CNC Rotary Table, can work with the CNC Max/Jr./Baron or the CNC Supra Milling Machines. The Driver will be built into the CNC Control Unit and operated by the Master Software.

$1,474.00

This MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.  The pendant communicates directly to the MX Software.  Click here for more details.

$250.00

With the MX Digital Probe you can duplicate artsy type 3D applications.  The probe will scan over your part while recording a tool path program for it.  Click here for more details.

$379.00

Rigid Tapping Add-On
No need for tapping head attachments or spending several man hours tapping by hand when you can let your CNC Masters milling machine do it for you. Create your tapping programs up to 1/2″ or 12 mm diameter holes.  Click here for more details.

$598.00

Touch Screen CNC

Need a dedicated computer with touch screen to easily drive your machine? We offer the Dell Windows 10 — All In One Touch Screen 19″ Computer and Monitor with Protective Dust Cover and USB connection dedicated to your CNC Masters machine. It will come installed with the MX Software. The computer vesa arm will come mounted to the side of the machine to secure your all in one computer. (COMPUTER IS WIRED FOR 110 VOLTS ONLY.)

$1,339.00

$1,339.00Add to Quote

Reinforced Max CNC Mill Machine Stand with Deep Chip Pan and Storage with Latched Door. Drain is built into the pan. All steel beautifully powder coated with a hammer finish dark gray color. The stand comes to you pre-built. 30″ high. Chip Pan is 31″ x 23″

$350.00

Engraving Attachments
“AIR TURBINE” Air Driven Spindle Model with 40,000 RPM, for jewelry, mold making, and fine engraving/detailing (requires air compressor 90 psi) Attachment in: 1/4″ collet w/3/4″ shank
Air Spindle comes with Oil Trap Assembly and Case.

$4,500.00

$4,500.00Add to Quote

¾ HP Router Attachment with 1/4″ collet for Engraving or Fine Machining Detail with 23,000 RPM which can be attached to the Quill of the CNC Max/Baron/Jr Mills only. (requires 110VAC)….

$394.00

CNC Jr Coolant Kit which includes computer control pump, tubing, magnetic base hose with two spray nozzles, 1-1/2 Gal. container, strainer, and assembly drawing.

$235.00

52PC Clamping Set:5/8″ for the CNC Masters Mills includes:

  • 24 Studs (4 of each): 3?, 4 “, 5 “, 6?, 7?, 8? long
  • 4 Coupling units
  • 6 Flange nuts
  • 6 Forced steel clamps, 2 each based on stud sets
  • 6 T-Nuts
  • 6 Steel step blocks
  • 1 Wall Rack

$88.00

11 PC R8 Collet Set
Range in size from 1/8″ to 3/4″ by 1/16ths.

$99.00

20 PC Titanium Coated End Mills Set

  • TIN coated for longer lasting
  • High Speed steel
  • Center Cutting, single end
  • Complete with wooden case.
  • 10pcs: 2 flute 3/16″-3/4″ by 16ths
  • 10pcs: 4 flute 3/16″-3/4″ by 16ths

$137.00

CNC Max Guard

CNC Max Splash Guard Shield Kit Protect most of your work area from coolant and debris. (Assembly and installation required.)

$225.00



JT33 Classic Drill Chuck with R8 collet attached.  Chuck Key included.

$48.00





Quick Change Tool

Royal Products
Improve your production time.

Easy Change Master Holder

$640.00

Easychange End Mill Holder, bore size 1/8″

$213.00

Easychange End Mill Holder, bore size 3/16″

$213.00

Easychange End Mill Holder, bore size 1/4″

$213.00

Easychange End Mill Holder, bore size 3/8″

$213.00

Easychange End Mill Holder, bore size 1/2″

$213.00

Easychange End Mill Holder, bore size 5/8″

$213.00

Easychange End Mill Holder, bore size 3/4″

$243.00

Easychange Drill Chuck Adapter for J33 chuck

$188.00

Easychange Drill Chuck Adapter for J2 chuck

$188.00

Software Packages

VisualCAD/CAM Software is ideal for the general machinist. This option gives you modeling, milling, and turning all into one software. This product is ideal for production machining (milling and lathe), rapid prototyping where ease of use and powerful toolpath generation methods are of paramount importance.

Standard Version Includes:

  • 2D & 3D Modeling, Mesh modeling
  • 2 1/2 Axis Milling
  • 3 Axis Milling
  • Drilling
  • TURN Module – 2 Axis Turning/Lathe programming module
  • ART Module – Artistic Modeling (Raster to Vector conversion, Pictures to 3D geometry…)
  • NEST Module – Parts Nesting (Rectangular and True-Shape Nesting)
  • First Year Maintenance included with your purchase from CNC Masters — this includes “direct tech support by phone, online connection, and email,” tutorials, and updates. You can opt to keep the maintenance package for a nominal annual subscription fee after your first year. If you choose not to keep this maintenance package, you still keep the license to your software.

TBA

$1,400.00Add to Quote

4th axis CAD

Upgrade to Expert mode 4th Axis CAM will allow indexing and continuous roughing and finishing operations to VisualCAD/CAM STD. Curve based continuous machining such as 4 Axis Facing, Pocketing, Profiling & Engraving as well as Surface/solids/meshes based machining such as Roughing, Finishing and Curve Projection machining are available for your CNC Masters Milling Machine. The EXP configuration also includes TURN, NEST and ART modules free of cost! Needless to say, direct tech support is also included with your purchase.

TBA

$2,500.00Add to Quote
