Wood Rot Repair: A Step-by-Step Guide

Having rotted wood in your home can be extremely frustrating and dangerous at the same time. Whether it’s in window sills or floor beams, rotten wood can be a safety issue and liability if not repaired or replaced in time. It can affect the well-being of your family, friends, and loved ones and can be dangerous as well. The last thing you want is to see any rotten wood on your patio, porch, home interiors, or the siding of your house. This guide is designed to show homeowners and DIY-ers how to spot and fix rotted wood.

Can rotted or damaged wood be repaired?

Yes! You can repair rotten wood by first removing the rotting from the original board or joists. You can then fill the surrounding area with a soft wood polyester filler or wood patch using a plastic putty knife. This material fills the area and cures to ensure strength and resilience.

It is essential to find out when rotten wood should be replaced or repaired. If the wood is too rotten, the repair won’t help much. In this case, it is recommended to get the piece replaced. But otherwise, there is ample opportunity to repair rotten wood. Let’s find out how:

How to determine if rotten wood needs to be repaired or replaced?

A well-established way to determine if wood needs to be repaired or replaced is – If a piece of wood is too rotten, the durability and stability of the beam will be compromised. The most prominent telltale signs of rotten wood are:

  • Deep cracks across the grain
  • Off-white fibers of the fungus
  • Growth of mushroom-like substances on the surface
  • Off-white or yellow tinge on the brickwork

It is better to replace rotten wood in such cases.

However, replacement is not always the only way out. Wooden beams can sometimes rot in some areas, but are still stable and strongly supported. This condition can be easily repaired.

The best way to test rotten wood is to use a knife/screw diver to poke in it. Rotten wood is generally soft and tender. If the knife sinks in more than 1/8″, the chances are that wood needs to be replaced.

It is important to understand when the wood is rotten so that you can make the right decision regarding the repair or replacement of wooden beams.

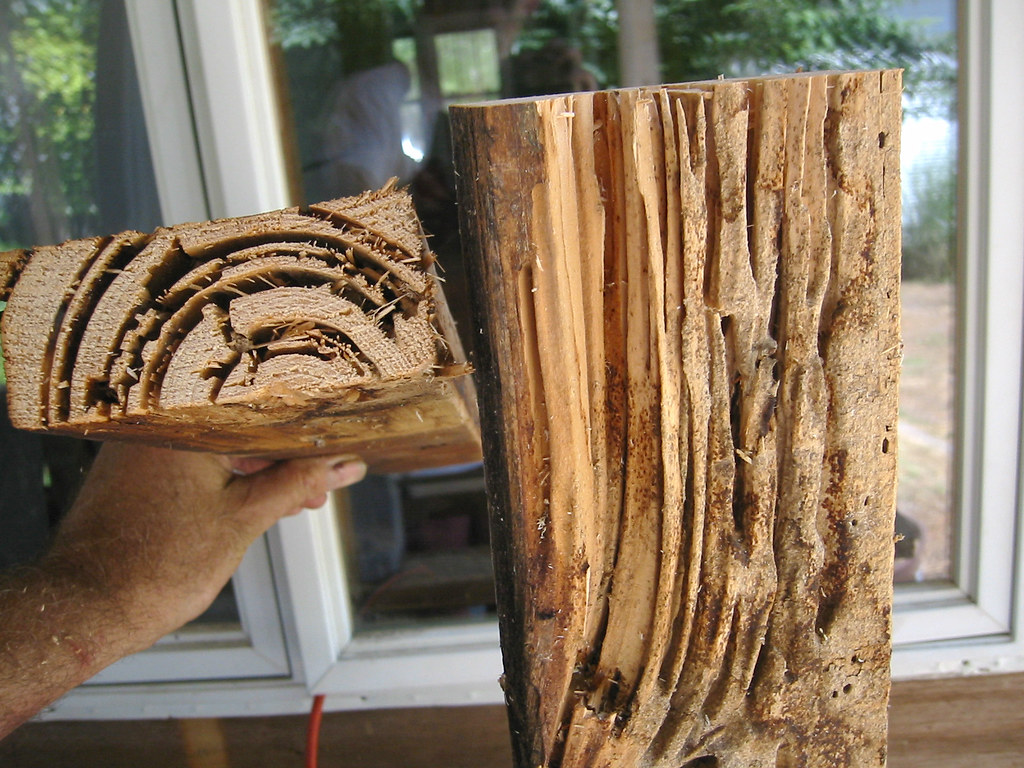

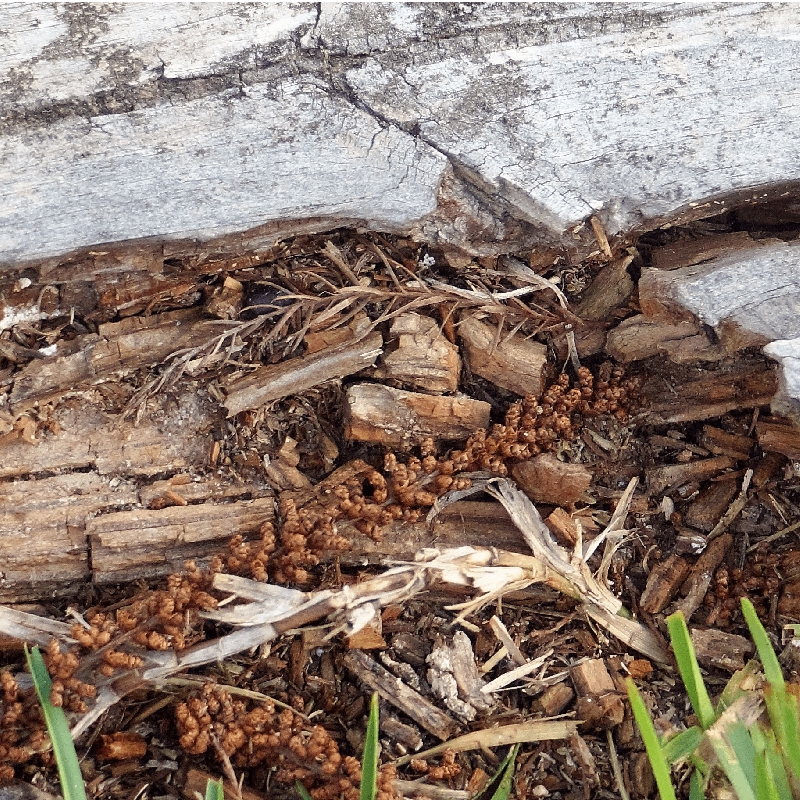

termite damage

Types of Rotting Wood – Wood rot and Termite damage

Wood destroying fungi or termite damage is called dry rot and can cause significant structural damage to wood. Similarly, wood rot is potentially disastrous, too, and both the problems can be confusing. The two types of damages are similar and may not be instantaneous. To handle potentially catastrophic problems, the ability to distinguish between the two is important.

Natural wood rot can be difficult to control, but you must take the necessary steps to eliminate dry rot in your homes.

READ MORE:  8 Ways to Fill Large Holes in Wood

How do you recognize dry rot?

Dry rot is a fungus that causes most of the wood damage you see. To determine if rotten wood needs to be repaired or replaced, you must identify dry rot and identify damaged areas of weakened wood.

When dry rot infects wood, it may appear to be rotten, and the wood field damp and soft when you touch it. If you poke it with a screwdriver, the wood may feel muddy. You can easily remove a piece of wood with a screwdriver. There are deep cracks in the wood around the affected area, and there may be visible fungal growth. Wood affected by dry rot becomes brittle and liable to crumble when pressure is applied.

Getting rid of dry rot

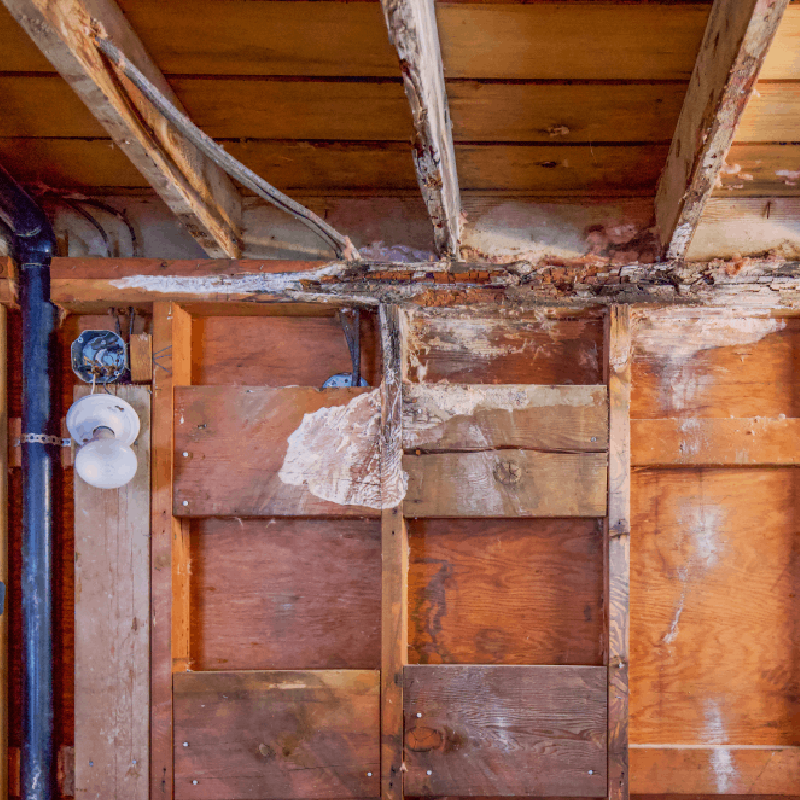

If your structure is heavily infected with dry rot and has wooden beams that can easily break in half, you will need to replace the board. You can repair the beam if you still have a sturdy piece of wood with a few small spots of dry rot. Dry rot is a fungus, which can spread maliciously. Removing dry rot is imperative for preserving the remaining wooden beams.

You must immediately discard the damaged wood and dry rot from the joists. Remove the infected pieces of wood by scraping off soft or weakened pieces of wood with a screwdriver. Then follow an appropriate method to curb the dry rot and effectively eliminate it.

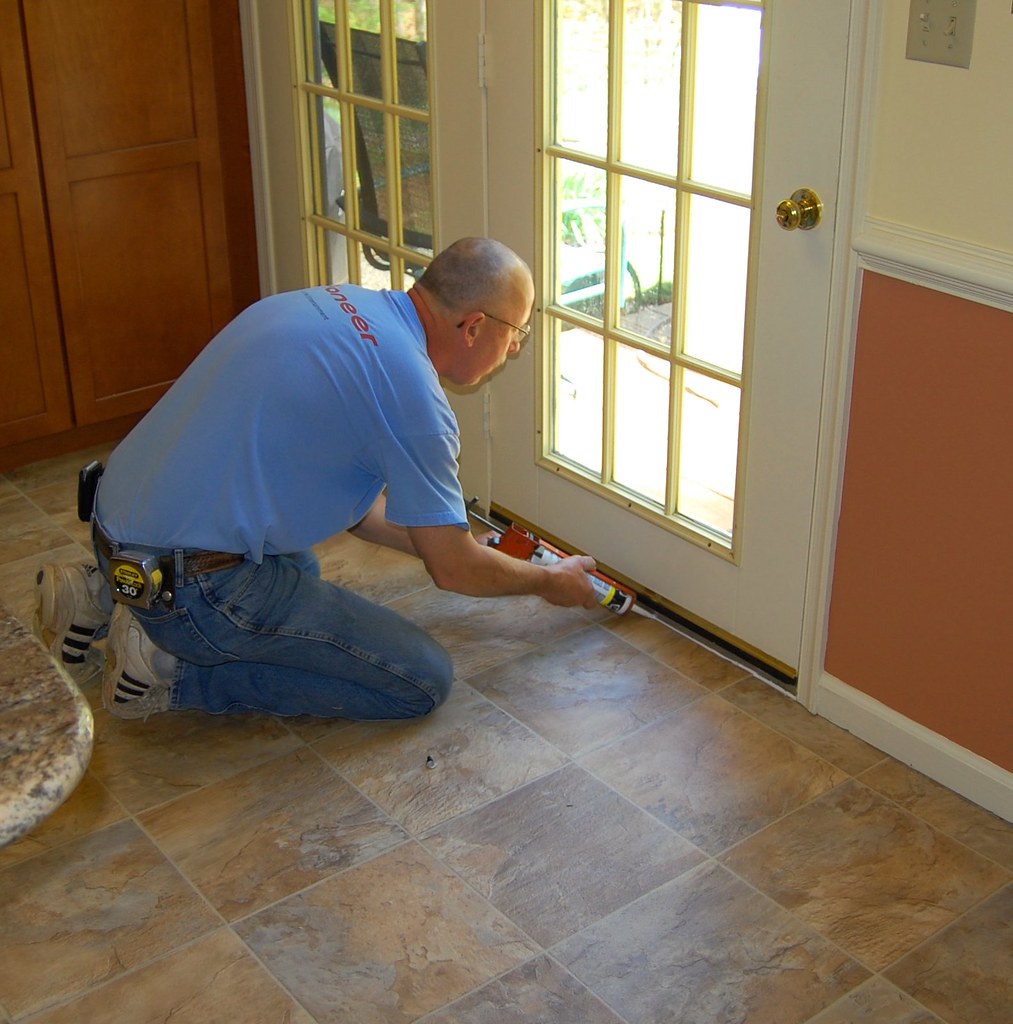

caulking around edges of window or door

How to prevent dry rot

You must take necessary precautions to protect the wooden features and structures in your homes. This will make the wood last longer and protect it from the effects of dry rot. Here is what you can do:

  1. Remove excess water sources that can affect the structure of the tree. The fungus grows in a humid environment
  2. When repairing wood plastic or dry rot wood, the joists can be treated with a fungicide to remove other traces of dry rot that may come back and further damage the board.
  3. Check your house and gutter system for leaks. Ensure all drains are clean and make the necessary provisions to irrigate and remove water from your home. Be careful to caulk around surfaces that may get wet
  4. Pieces of wood can be painted with a polyurethane coating to protect the wood from water damage. This will greatly help protect the wooden structures in your home and prevent dry rot

These precautions can save you the hassle of dry rot.

How to repair rotted wood – a step-by-step guide

What you need to repair rotten wood

Before repairing rotten wood, it is important to possess the appropriate pre-requisites and the right tools. The following is a basic list of tools needed to effectively repair wooden beams

  1. Knife
  2. Wood filler
  3. Spatula or Putty Knife
  4. Wood grinder or wood sander
  5. Wood primer
  6. Paint

These tools are essential for the effective repair of rotten wood.

READ MORE:  The 15 Best Wood Species For Outdoor Projects & Furniture

Which wood filler to use?

A variety of wood filler products are available in the offline and online markets for repairing pieces of wood. You can go for softwood polyester fillers or epoxies. These materials are known to be durable, robust, and ideal for combination with pieces of wood.

Most of these products can be found in grocery stores. If you have a house with large wooden fixtures such as a porch or siding, it’s recommended to have a wooden repair putty or filler handy, so you can use it as needed.

5 Ways to Repair Rotted Wood

With time, the wood begins to rot when exposed to moisture. Not only does it become an eyesore, but it can also damage your home if left unattended. Fortunately, wood rot can be easily repaired. You can make your home look new by fixing the rotten parts using any of the methods discussed below.

Here we will discuss 5 methods that you can use to repair rotten wood. You can choose any method according to your ease and comfort:

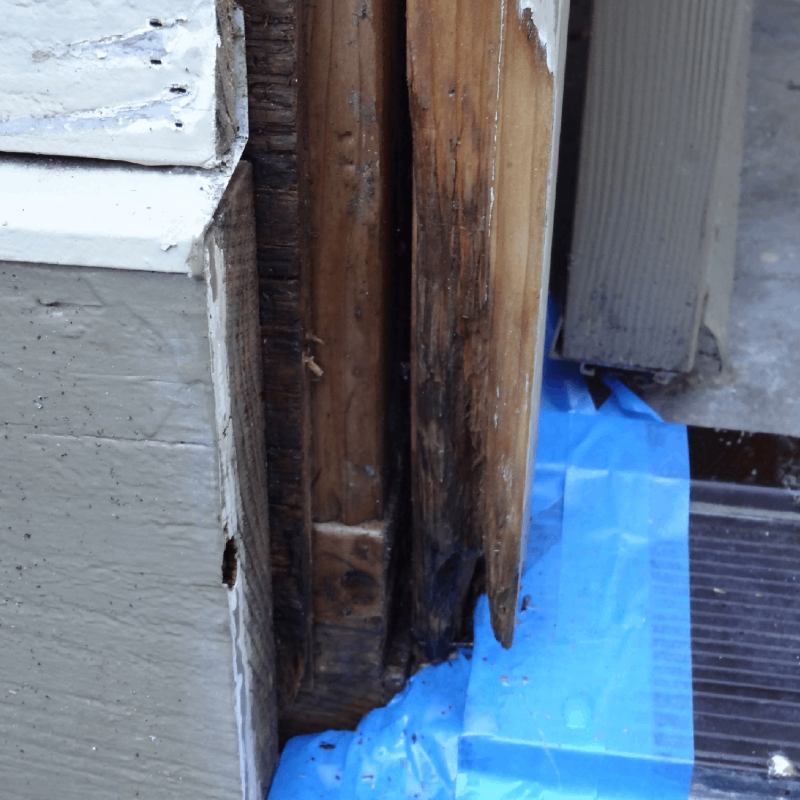

Method 1 – Remove the rotten part of the wood

Step 1 – Scratch the rotten wood and dig up loose rot using a claw hammer. Place the hammer claws at the root of the rot. Apply pressure when pulling the nail back toward you. Remove as much rotten wood as possible without causing any damage to the good wood. Simply remove the soft and rotten wood only.

Step 2 – Remove the remaining rotten wood using a router with a V-shaped bit and hold it while keeping the drill bit 3.2 mm or 1⁄8 inch from the wood’s back edge. Use short back and forth movements to remove rot that the hammer did not reach. Keep grinding the wood until you have a healthy, solid wood because any it of rotting is left behind, it will cause damage again. Hardwood is more difficult for routers to cut. Wooden beam.

Step 3 – Remove the paint and surface rot as several touch-up solutions do not adhere to existing paint and must be removed. Use a paint scraper or coarse 60 grit sandpaper to remove any residue or dirt, rust, or primer on the wood surface. Apply equivalent pressure when working in a circular motion.

Step 4 – Apply 4-6 coats of wood repair agent to the area. Use the included brush to paint the entire surface of the restorer. Work the restoration between layers for 2 minutes so that it can be immersed in the wood. Allow the repair agent to dry completely for 2 hours before retreating. When using the repair agent, wear rubber gloves to avoid contact with the skin.

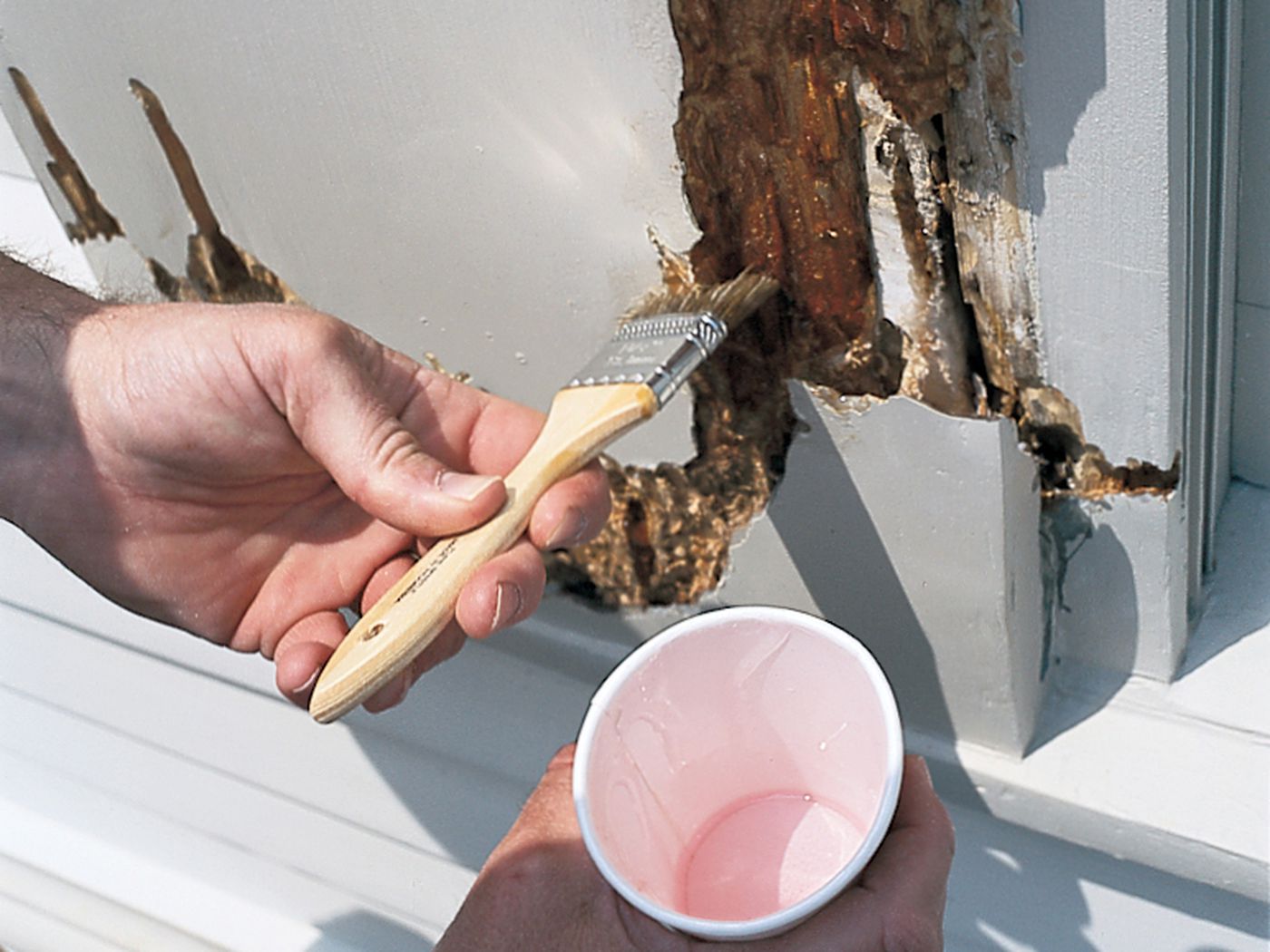

epoxy wood repairMethod 2 – How to fix the area with Epoxy

Step 1 – Paint the wood with a binder or binding agent.

Step 2 – Mix the two-part epoxy consolidant with a putty knife on a non-porous surface.

READ MORE:  19 Must-Have CNC Furniture Design Resources For Your Next Project

Step 3 – Use the putty knife to mold the epoxy filler into the wood

Step 4 – Scrape off excess epoxy filler with a clean putty knife

Step 5 – Allow the epoxy filler to set overnight.

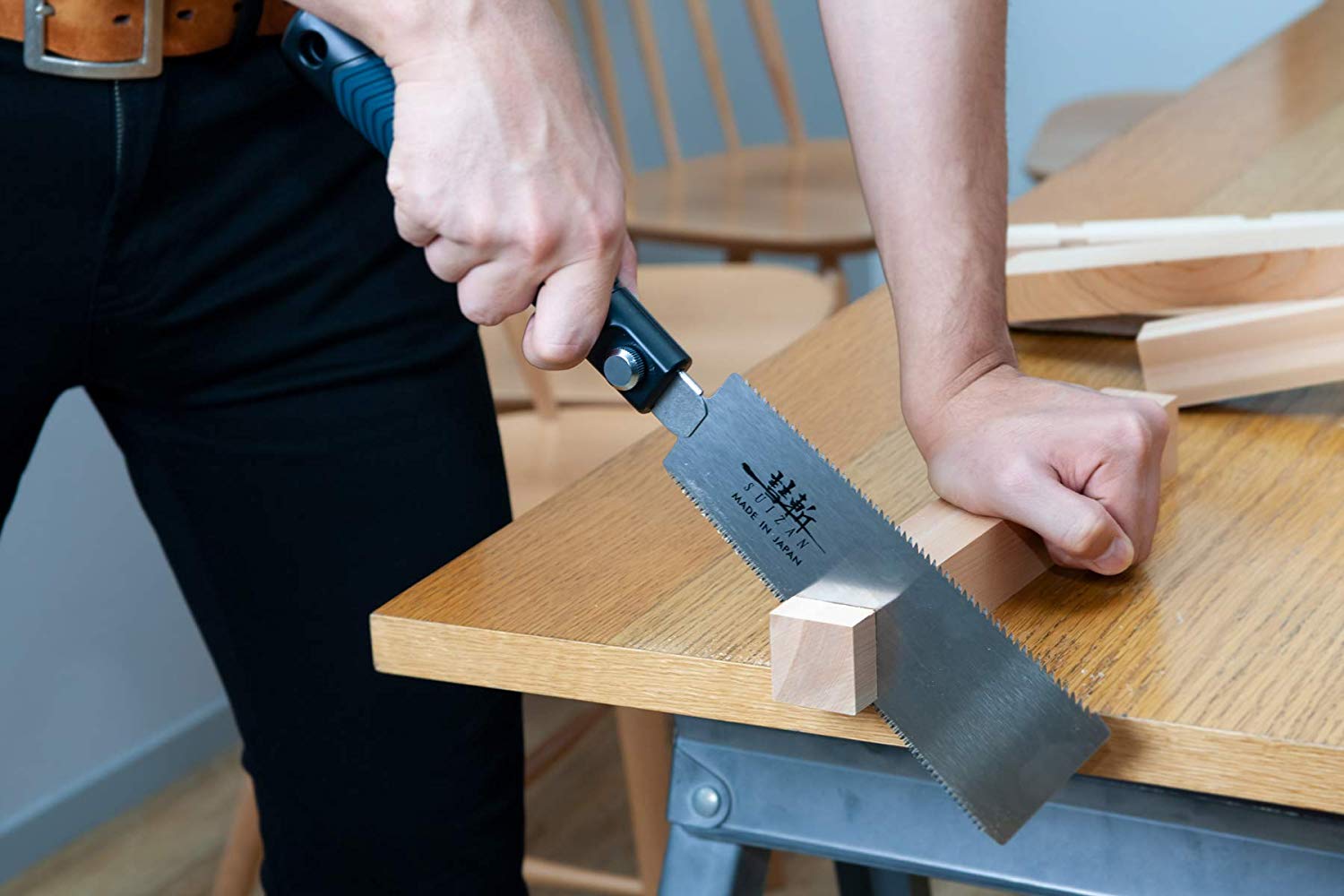

cutting a wood patchMethod 3 – Creating a Wood Patch

Step 1 – Use a Japanese hand saw to cut the wood smoothly and straight.

Step 2 – Cut a piece of cedar to the size of the hole you want to fill.

Step 3 – Wet the exposed wood with a damp cloth

Step 4 – Apply polyurethane glue to the wood and place the patch

Step 5 – Drill two screws on each side of the patch to hold the patch in place

Step 6 – Remove excess glue from the patch after 6 hours

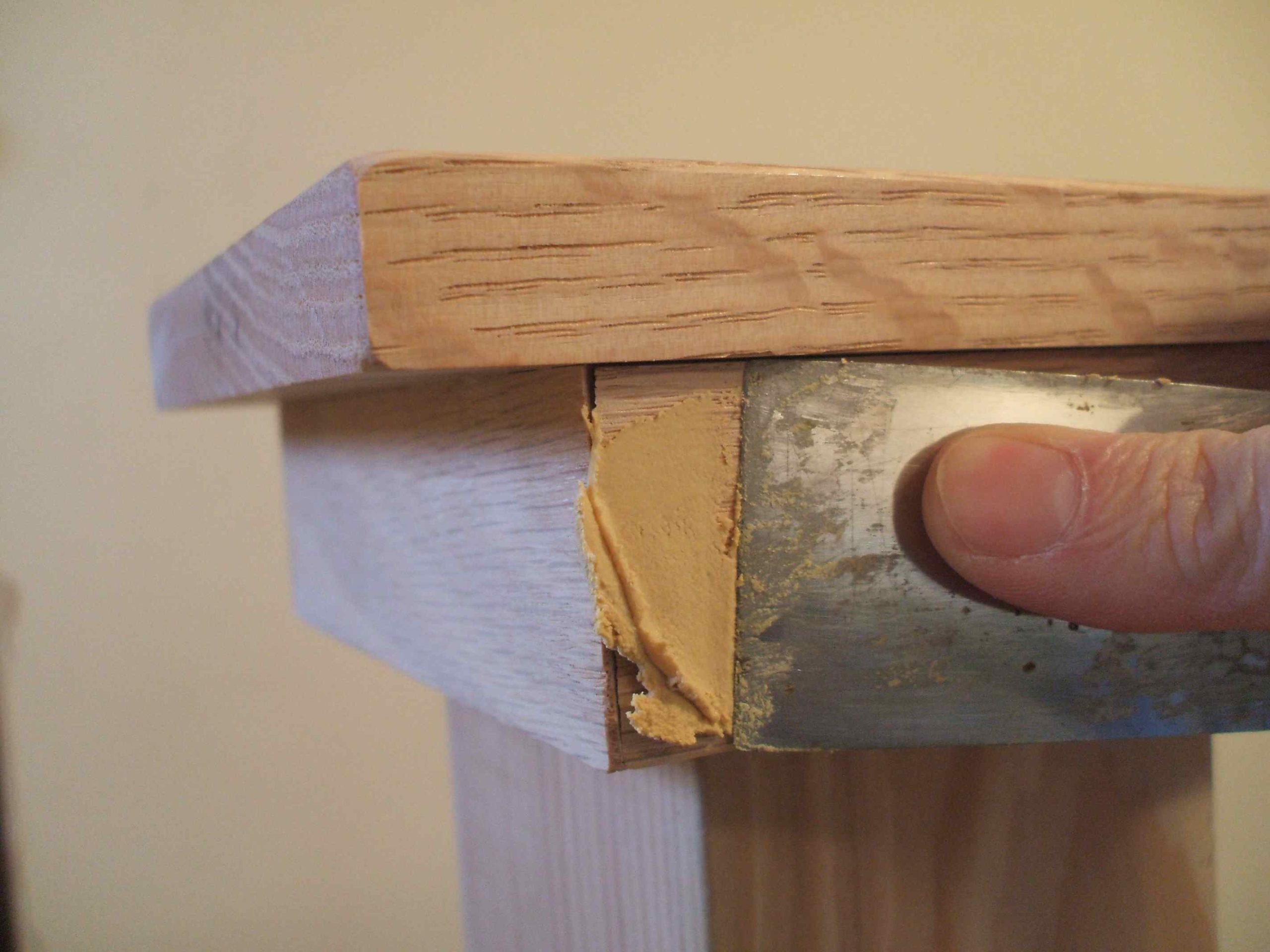

applying a wood fillerMethod 4 – Use a wood filler to fix and patch

Step 1 – Pour a 3-inch diameter wood filler circle onto a non-porous surface

Step 2 – Push the filler wood hardener tube with the cap on

Step 3 – Place a 3-inch strip of hardener and apply wood hardener on the putty, and mix

Step 4 – Apply filler with a putty knife while applying firm pressure to the wood.

Step 5 – Allow the filler to dry for 30 minutes

Method 5 – Wood repaired with sand, patch, and varnish

Step 1 – Smooth the patch with sandpaper

Step 2 – If the original wood is dirty, use the appropriate stain

Step 3 – Once the wood is painted, apply the primer at least twice

 Step 4 – Once the primer is dry, apply the paint once

How to Care for Wood

Proper care of the wooden furniture in the home can prevent wood rot. You can seal wooden fixtures with wood stains, paint, or a clear sealer and protect them from fungus, water damage, termites, and other damage.

This is what you can do:

  1. Paintbrush or repaint your house every 5 years to protect the wood.
  2. Keep your wood fixtures and accessories clean every year, removing mildew that can eventually lead to mold.
  3. Clean wood using warm soapy water and a scrubbing brush to scrape dirt and other debris off

Conclusion

The above methods are safe when it comes to rotten wood repair in your home. Whether it is about wood repair or replacement, you must take precautions and necessary steps to ensure that your home remains safe for everyone who lives there – This is an integral part of owning a home.   Your perfectly optimized content goes here!
