Vertical Knee Mill Retrofit Kit -- Build Your Own CNC Machine!

Improve the productivity of your milling machine with automation technology! Easy Turn-Key Operation. No fancy setups required. Beginners and Experienced machinists will find how easy it is to mill your parts with our cnc systems.

Order a Kit Today, and get BOBCAD-CAM V21 for $550.00 more!! (Cannot be combined with any other deals. Order while supplies last!)

Retrofit your own Vertical Knee Mill Bridgeport Copy-Type 9x42" or 9x49" Table with 12" Knee with our "complete" three axis CNC Kit for the low price of $5,148.00 or check out our CNC Supra Knee Mill for $4,250.00 more!

Click picture to Enlarge. Have a larger forehead on the J-Head? The motor can be positioned upside down as well.

Your CNC Vertical Knee Mill 8 hours later--"Ready to Operate." See the performance of the CNC Supra Vertical Knee Mill on VIDEO.

"For those of you out there who are considering a
conversion of any Bridgeport or Bridgeport clone knee mill, please allow me to advise you to give serious consideration to the CNC Master's kit. It is a complete kit and is extremely well designed with great consideration given to making it easy to assemble with a minimum of work to the mill itself. Working by myself and following the instructions, I had no problems of any kind with respect to alignment or any other issues. In running the mill, repeatability is as advertised as is accuracy. My mill is equipped with X and Y DRO and the coordinates called for on the computer are matched by the DRO indications within 2 to 4 ten thousandths EVERY time! Measurements of repeat runs are even better than that! I searched a long time for a kit and given CNC Master's design and Mfg quality and including ease of conversion I could not find anything that came even close to matching it. Neither could I
find anything close for this price. Lastly, CNC
Masters has been one of the most accommodating companies I have ever dealt with. All things considered, this was one of the best decisions I have made and a huge step in having more capability."
-Michael Morris, Marysville CA

Your Three Axis Kit comes "COMPLETE" with:

Powerful X, Y, & Z micro-stepper motors. The minimum possible motion is .0001” with a minimum speed of 0.5” per minute. The maximum speed is 50” per minute. X and Y are size 34 pre-wired with 1500 in/oz. of torque and the Z is size 34 pre-wired with 1200 in/oz. of torque.
X, Y, Z Zero Backlash Ball Screws with pre-loaded ball nuts to eliminate play on the table, block, and quill travels to provide precision machining.
The Master Operating Software which can operate on your PC Windows XP/VISTA computer through USB port. Click here to view our full specs on the CNC SUPA Master Operating Software.

Tolerances:

Accuracy is +/- 0.003" in 12" (+/- 0.00025 per inch)
Repeatability is within 0.0005"
Resolution is 0.0002" of linear motion on the X, Y, and Z.

Features:

Home Reference Sensors on the X, Y, & Z which saves your home/zero position as the first line of your program. This feature allows you to quickly return to the home position on any program without having to manually zero your three axes again.
Tool Height Compensation with Automatic Quill Retraction for easy R8 collet tool change
Easy to Use Jogging Features and Feed Control
Jog-Input Command automatically writes each line of your toolpath as you manually jog each axis by pc mouse, keyboard, or the optional hand held remote control joystick to save as a program for repeat use.
Software Power Feed capabilities on X, Y, Z, and W with one click of the pc mouse for exact relative driving distance.
Run your tool path from any line on your program
3 Axis or 4 Axis CNC Control Unit which mounts on the back of your mill and drives your system.
Master Software with G-CODE file interpreter; works with Windows XP to VISTA.
Hand-Wheels for each axis. These hand-wheels mount directly behind each motor, giving you manual option for the machining of quick and simple parts that do not require programming.
All hardware supplied with easy-to-follow instructions for the conversion of your mill.

CNC Machine Tools CNC Supra Milling Machine Mill Machine Control Unit

Other Great Features that comes with your KIT:

X & Y Direct Drives--no belts to adjust. This results in smoother operations and ensures accuracy unlike pulley and belt drive methods which can cause the belt to buckle causing inaccurate results. This unique design of direct drive keeps the user without having the need to change the belt or adjust as it wears down.
No bulky large motor brackets that house the belts on the X & Y
Full 3 Axis coordinated motion control, or hand-operated control
Easy-to-follow instructions with pictures to convert your mill
Easy mounting of Z Axis bracket ball screw motor assembly to Quill with alignment reference guides for Quill Drive
Easy precision alignment setup of the X & Y ball screws to your machine
Control Unit mounts on side of your machine and hooks up to your PC
Pre-engineered for you when it comes to pitch and resolution. No additional parameters set-up required. Display resolution is 0.0001 micro-stepping travel.
Since this is not a complicated servo system, you do not need to tune up anything for optimum performance. Our design uses a micro-stepping system "already" pre-designed for optimum performance.
Ready-to-Operate System: As soon as all hardware conversion on your mill is done, install the software on your PC, plug the Control Unit to your PC, turn it on, and you are ready to program your parts to machine!
Runs files from popular CAD-CAM softwares that produce standard G-Codes such as Mastercam, Surfcam, etc to machine and engrave intricate and detailed parts
Load DXF files from graphic programs such as CorelDRAW into CAM softwares to machine or engrave detailed parts from scanned images
Easily build a file of commands to machine simple parts without the need to learn or use a CAD-CAM program
Can add hand held remote control, engraving attachment, fourth axis, quick tool change, computer control coolant assembly--providing your machine contains a built in tank from our line of accessories to your newly assembled CNC Mill. The Hand Held Remote Control is an optional accessory which is mounted to your Supra's Z axis with Velcro as shown in the picture above.
Easy to learn and operate, especially if you already know how to mill
Digital Read Out Display of your X, Y, Z, (and optional W) counters on your computer screen in INCHES or METRIC using your PC mouse, keyboard, or our optional Hand Held Remote Control.
Backed up by our CNC MASTERS ONE YEAR WARRANTY.
Unlimited "life-long" operational Tech Support step-by-step trouble shooting and walk-through process by email or phone support Monday-Friday PST during normal business hours.
Unlimited "life-long" operational Tech Support also is transferable to new owners of previously owned CNC MASTERS CNC controller and software.
Free Master Software Updates
Discounted Prices for Existing Customers of CNC MASTERS
Computer Controlled Variable Spindle is an "optional add-on" to your kit if you have a three phase 3 HP Motor. Click here to learn more about the variable spindle computer control.

These signs were made by one our happy customers after he converted his manual mill to CNC using the CNC Supra Retrofit Kit and the fonts from a CAD-CAM.

We provide you with "easy-to-follow" detailed instructions on how to mount the motors directly onto your mill with our easy-to-mount brackets just like in the pictures. The instructions will also show you how to install all the other features that are included in your kit such as your ball screws and Control Unit. IMPROVE THE PRODUCTIVITY OF YOUR MILLING MACHINE with automation technology! Why spend thousands more on a new CNC Milling Machine if you already own a bridgeport-type vertical knee mill 9x42 or 9x49 table, 12" knee? Put it to use, and design parts with ease using CNC Masters technology! All components and accessories on the CNC SUPRA Retrofit Kit are individually tested for quality assurance before shipment. The CNC SUPRA Retrofit Kit is backed up by our ONE YEAR LIMITED WARRANTY! Tech Support by email at sales@cncmasters.com or phone (626) 812-8300 is available during normal business hours Monday through Friday, PST. See our warranty for details.

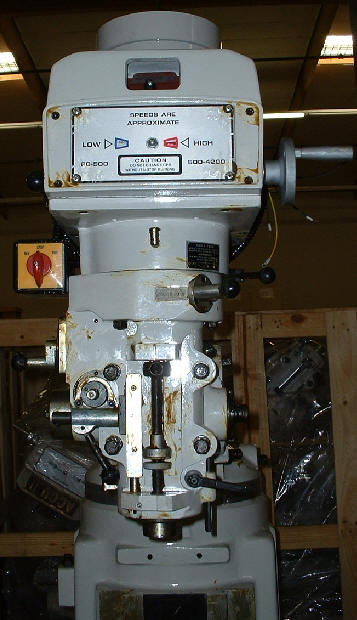

If your mill looks like the model in the thumbnail picture above with a 9x42/49 Table and a 12" Knee, and has Quill Face like in these close-up pictures below or like the BRIDGEPORT SERIES 1 J-HEAD, then the CNC Supra Kit will work for the conversion of your machine!

Mill Machine accessories CNC Machine Accessories CNC Machining Centers

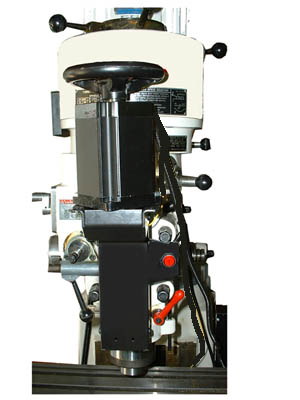

If the top part of the Head comes forward as in the third picture above, the Z Axis Motor and Bracket can be mounted reversed so it does not cause interference with head of your machine. A simple reversal of the motor wires will allow you to retain the correct pos/neg motion. The top and bottom reference faces can have an un-even surface as shown in the pic above or have a flat surface as well.

In approximately 8 hours you should be ready to operate your newly retrofitted milling machine with CNC power!*

Hand Held Remote Control Also check out our line of accessories such as our own exclusively designed Hand-Held Remote Control which allows you to move your newly converted CNC machine's three or four axes with ease by the touch of a joystick! Only $485.00 more!

Have questions before placing an order? Visit our Q & A page or Contact Us with your questions. We will reply to you with your answers by email same day, or next business day PST.

ORDER A CNC SUPRA RETROFIT KIT TODAY.

Our CNC SUPRA Retrofit Kit is designed for any popular brand milling machine you see in the first picture 9x42/49" table and 12" knee.

Click on the picture to enlarge. This picture comes to us from us from our Australian Dealer who converted the Hafco BM20A knee mill with the CNC SUPRA Retrofit Kit.

We also carry Vertical Knee Mills BPS-1649 at the unbeatable price of $3,455.00!

Looking for a mid-size table top CNC Mill instead? The CNC Jr. Table Top Mill has all the great functions of the CNC Supra Retrofit Kit but it comes complete with a table top mill; no retrofitting required. Click on the CNC Jr. Mill picture to your right to see if this machine is more suitable for your machining needs.

*Certain tools required when retrofitting your milling machine with CNC Masters parts.

Please see our Terms & Conditions regarding sales.
