CNC Jr. Retrofit Kit

Retrofit your own Enco Mill-Drill®, Jet®, Acra® RF-31, Grizzly® G3358, G1007, and any other copy of the Rong Fu 31 Mill-Drill with our complete CNC Kit for the low price of $4,248.00!

Order a Kit Today, and get BOBCAD-CAM V21 for $550.00 more!! (Cannot be combined with any other deals. Order while supplies last!)

Your Kit will come with:

Powerful X, Y, & Z micro-stepper motors size 34 with 1200 in/oz. of torque to prevent any loss of steps. The minimum possible motion is .0001” with a minimum speed of 0.5” per minute. The maximum speed is 50” per minute.
X & Y Axes Zero Backlash Ball Screws with pre-loaded ball nuts to eliminate play on the table travel, and provide precision machining
Z Axis pre-load arrangement to eliminate backlash on the up/down travel
X & Y Direct Drives--no belts to adjust. This results in smoother operations and ensures accuracy unlike pulley and belt drive methods which can cause the belt to buckle causing inaccurate results. This unique design of direct drive keeps the user without having the need to change the belt or adjust as it wears down.
No bulky large motor brackets that house the belts on the X & Y making your machine easy to convert
Full 3 Axis coordinated motion control, or hand-operated control
Easy-to-follow instructions with pictures to convert your mill
Easy precision alignment setup of the X & Y ball screws to your machine
Control Unit mounts on the back of your machine and hooks up to your PC by USB
MASTER OPERATING SOFTWARE WINDOWS INTERFACE. Works on Operating Systems: WINDOWS VISTA/XP. Click here to view detailed specs on the Master Operating Software.
All hardware supplied for assembly.

See the performance of the CNC Jr Mill on VIDEO

Other Features of CNC Jr Retrofit Kit:

Pre-engineered for you when it comes to pitch and resolution. No additional parameters set-up required. Display resolution is 0.0001 micro-stepping travel.
Since this is not a complicated servo system, you do not need to tune up anything for optimum performance. Our design uses a micro-stepping system "already" pre-designed for optimum performance.
Ready-to-Operate System: As soon as all hardware conversion on your mill is done, install the software on your PC, plug the Control Unit to your PC, turn it on, and you are ready to program your tool path to machine!
Runs files from popular CAD-CAM softwares that produce standard G-Codes such as Mastercam, Surfcam, etc to machine and engrave intricate and detailed parts
Load DXF files from graphic programs such as CorelDRAW into CAM softwares to machine or engrave detailed parts from scanned images
Easy to Use Jogging Features and Feed Control
Jog-Input Command automatically writes each line of your toolpath as you manually jog each axis by pc mouse, keyboard, or the optional hand held remote control joystick to save as a program for repeat use.
Software Power Feed capabilities on X, Y, Z, and W with one click of the pc mouse for exact relative driving distance.
Tool Height Compensation with Automatic Quill Retraction for easy R8 collet tool change
Easily build a file of commands to machine simple parts without the need to learn or use a CAD-CAM program
Can add hand held remote control, engraving attachment, fourth axis, computer control coolant assembly--providing your machine contains a built in tank, and quick tool change, from our line of accessories to your newly assembled CNC Mill. The Hand Held Remote Control is an optional accessory which is mounted to your Jr's Z axis with Velcro.
Beginners will appreciate the user-friendly control system. Easy to learn and operate, especially if you already know how to manually mill
Digital Read Out Display of your X, Y, Z, (and optional W) counters on your computer screen in INCHES or METRIC using your PC mouse, keyboard, or our optional Hand Held Remote Control.
Backed up by our CNC MASTERS ONE YEAR WARRANTY.
Unlimited "life-long" operational Tech Support step-by-step trouble shooting and walk-through process by email or phone support Monday-Friday PST during normal business hours.
Unlimited "life-long" operational Tech Support also is transferable to new owners of previously owned CNC MASTERS CNC controller and software.
Free Master Software Updates
Discounted Prices for Existing Customers of CNC MASTERS
Computer Controlled Variable Spindle is an "optional add-on" to your kit if you have a three phase 2 HP Motor. Click here to learn more about the variable spindle computer control.

Tolerances:

Accuracy is +/- 0.003" in 12" (+/- 0.00025 per inch)
Repeatability is within 0.0005"
Resolution is 0.0002" of linear motion on the X, Y, and Z.

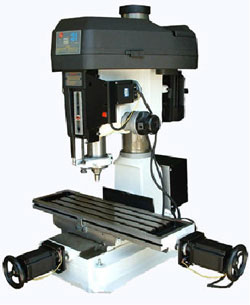

Take a look at the picture on your top right. We provide you with "easy-to-follow" detailed instructions on how to mount the motors directly onto your mill with our easy-to-mount brackets just like in the picture. The instructions will also show you how to install all the other features that is included in your kit. Why spend thousands more if you already own a RF-30 or RF-31 Mill-Drill sitting in the corner of your garage or shop? Put it to use, and design parts with ease using CNC Masters technology! All components and accessories on the CNC Jr Retrofit Kit are individually tested for quality assurance before shipment. The CNC Jr Retrofit Kit is backed up by our ONE YEAR LIMITED WARRANTY! Tech Support by email at sales@cncmasters.com or phone (626) 812-8300 is available during normal business hours Monday through Friday, PST. See our warranty for below for details.

Own a different brand named mill-drill? If your mill-drill resembles the picture above, and the diameter of the column/neck of your mill-drill is 4.5 inches, the table size length is between 28-1/2-3/4 and table width is 8-1/4 then the CNC Jr. Retrofit Kit will work with your mill-drill machine.

In approximately 6-8 hours you should be ready to operate your newly retrofitted table top mill with CNC power!*

Mill Machine Accessories Check out our great accessories to maximize the many uses of your newly retrofitted CNC table top mill like our very own Hand Held Remote Control which moves your three axes with the touch of a joystick. Only $485.00 more.

We also carry RF-31 Mill-Drills are unbeatable prices. Only $1,024.00!

Have questions before placing an order? Visit our Q & A page or Contact Us with your questions. We will reply to you with your answers by email same day, or next business day PST.

ORDER A RETROFIT KIT TODAY.

Please see our Terms & Conditions regarding sales.

*Certain tools required when retrofitting your table top mill with CNC Masters parts.
