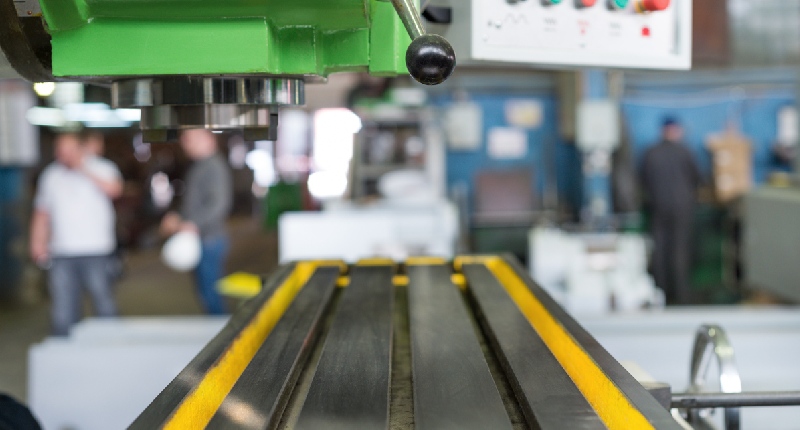

vertical milling machine table

The 8 Most Important Parts of a Milling Machine

In machining, there are two primary types of milling machines: the vertical milling machine, with a Bridgeport milling machine being an excellent example, and the horizontal milling machine. Although the milling operations on the two styles of milling machines might vary, the milling machine parts that make them up have much in common.

We’ve created a list of eight of the essential parts of a milling machine that you should know and understand, starting from the floor and moving up. But first, let’s do a quick introduction to milling machines.

What Is A Milling Machine?

Milling machines, whether manual or CNC machines, remove metal from workpieces, getting the desired shape and dimensions using a spinning tool called a milling cutter. Unlike a lathe machine, on which a workpiece spins and the cutting tool moves into it to create cylindrical shapes, the milling machine employs end mills, face mills, dovetail cutters, and various other milling cutters to machine flat and irregular surfaces, including those that are concave or convex.

Milling machines are not all that complicated in theory: A machine operator fastens a workpiece to the machine tool’s work table using a work holding device, such as a clamp or vise. The workpiece is moved through the X and Y-axis as the milling cutter removes the material and a skilled worker or CNC program directs it on a manual or CNC milling machine.

diagram of milling machine parts
A diagram of the main parts of a milling machine

8 Key Milling Machine Parts

1. Column and Base

The cast iron column and base support the other parts of the milling machine operations. The column rests on the base and typically houses the oil and coolant system. The base is the foundation carrying the weight of everything on the machine, while the column takes the direct weight of the knee and work table. The weight of these two components ensures there is minimum vibration and better surface finishes even after the heaviest cuts.

2. Knee

The knee is attached to the column by dovetail ways and is supported and adjusted up and down by an elevating screw, also called a vertical positioning screw, running vertically from the base. The vertical movement can be achieved by either a hand crank or power feed. The handle to move the saddle in the transverse direction (cross feed, or in and out) is also located on the knee, while the gearing mechanism is enclosed within the knee. Some milling machines have power table feed in the transverse direction, and that unit is on the knee, as well.

The saddle is on top of the knee moving transversely to the column and providing motion in a horizontal direction to the workpiece. It is also made of cast iron.

3. Power Feed Mechanism

The power feed mechanism is contained in the knee. The power feed mechanism is used to control longitudinal (left and right), transverse (in and out), and vertical (up and down) feeds. Feed rates are changed for some knee milling machines by turning the speed selection handle. Most milling machines have a rapid traverse lever to provide a temporary increase in the speed of the longitudinal, transverse, or vertical feeds.

4. Work Table

As its name suggests, most of the machining work happens on the work table. The table is a rectangular piece of cast iron with T-slots for clamping a workpiece directly to it or fastening a vise or other work holding device to hold smaller parts and machine them safely and efficiently.

The longitudinal variable speed power feed and handles are part of the work table. In addition, an X-axis leadscrew under the table engages with a nut and assists the table in moving horizontally, either under power or manually.

5. Ram

The ram is a movable overhanging arm on a vertical milling machine. The ram is mounted on top of the column, and the milling head is attached to it on one end. On Bridgeport milling machines, the operator can extend and swivel the ram to cover more of the work table when machining a larger workpiece.

6. Overhanging Arm (Horizontal Milling Machine)

The overhanging arm, often called the overarm, is a horizontal cat iron beam on the top of the column on a horizontal milling machine. Similar to the ram on a vertical milling machine, it’s usually a single cast iron piece sliding on the dovetail way.

7. Spindle

One of the essential parts of the milling machine is the spindle. It holds and drives the cutting tools and also a drill chuck, collets, and other tool holders. Many vertical milling machines are de facto drilling machines in addition to doing side milling, flat milling, and various other types of cutting that require high-quality tooling.

Because of the different shapes and mechanical application methods of the milling cutters, the milling machine can perform various milling jobs, including plane milling, surface milling, angular milling, groove milling, gear milling, and cam milling. You can use a forming milling cutter to machine complex contours and an indexing head to mill a helical groove.

8. Arbor Support (Horizontal Milling Machine)

The arbor support is a casting with a bearing that supports the arbor’s outer end and aligns the arbor’s outer end with the spindle. Arbor support prevents the springing of the outer end of the arbor in cutting operations. Multiple cutting tools can be mounted on the arbor for gang milling, offering higher productivity with the arbor support reinforcing the arbor to allow for heavier cuts.
