CNC MILLING: CNC SUPRA Mill

Turn-Key Operation for any beginner or experienced machinist who needs a user-friendly easy to use cnc control to begin cutting parts the same day it arrives.

The CNC SUPRA Vertical Knee Mill provides the strength and durability of a manual driven bridgeport-type vertical knee mill. The ingenuity of the CNC Supra Knee Mill can machine your intricate and detailed parts through automation technology while still giving you the option to manually machine your simple parts through the use of the axis' hand wheel. Improve your productivity with ease.



• Small companies: Why pay thousands for out-sourcing when you can machine your own parts at a fraction of the cost?
• Large companies: Why pay thousands for a CNC machine that come with all the extras bells and whistles to cut out a simple part day in and day out?

SAVE YOUR BUDGET, TIME, AND BEGIN CUTTING PARTS THE SAME DAY. The CNC SUPRA is made in the USA with parts made in the USA and abroad allowing us to bring the savings to you. We also build our controllers in-house in the USA so we'll never direct you to a third-party vendor for any support or troubleshooting needs you may have. THE CNC SUPRA IS TESTED FOR QUALITY AND PERFORMANCE IN-HOUSE IN AZUSA, CA USA.

Complete 3 Axis CNC SUPRA (9x49) Mill ready to hook up to your PC for $9,498.00!

Whether you are an engineer looking for an economical way to prototype your mechanical design, or a CNC machine shop foreman looking for high powered tough and precision CNC Mill to mass-produce a single part, the CNC Supra Mill / CNC Vertical Knee Mill may be the solution you need. Whether you are a small or large manufacturer needing custom made parts for your products, the CNC Supra / CNC Vertical Knee Mill is a cost-effective machine that will instantly improve your productivity line by saving your tool path program to re-use as many times over to machine your part. The CNC Supra is also a versatile machine that can be used as a tool for product development, engraver, and teaching applications for vocation schools and science labs. Create simple and complex parts with ease. Check out our CNC Supra Knee Mill Prices. These two pictures below where given to us from GE Healthcare who purchased the CNC Supra Milling Machine for their various applications. See our testimonials for more great pics taken from our satisfied customers.

CNC SUPRA Mill Video

CNC SUPRA Vertical Knee Mill Features

• Works on 32 bit operating systems: WINDOWS 7, VISTA, and XP on USB.
• Powerful X, Y, and Z-axis micro-stepper motors are size 34 with 1200 in/oz. of torque. Stronger torque coupled with micro-stepping motion keeps the CNC Supra from losing steps and performs as accurate as a servo system.
• The minimum possible motion is .0001” with a minimum speed of 0.5” per minute. The maximum speed is 100” per minute on your Rapid Settings with ramp down effect to keep the machine from jerking.
• X & Y Zero Backlash Ball Screws with pre-loaded ball nuts to eliminate play on the table travel, and give precision machining
• X & Y Direct Drives--no belts to adjust. This results in smoother operations and ensures accuracy unlike bipolar, pulley and belt, drive methods which can cause the belt to buckle causing inaccurate results. This unique design of direct drive keeps the user without having the need to change the belt or adjust as it wears down.
• Z Axis Zero Backlash Ball Screw with pre-loaded ball nut to eliminate play on the up and down travel of the Quill.
• Quill Driven which is better than a knee driven Z axis; this maintains rigidity of the part being machined on three axis interpolation.
• Home Reference Sensors on the X, Y, & Z which saves your home/zero position as the first line of your program. This feature allows you to quickly return to the home position on any program without having to manually zero your three axes again.
• Full 3 Axis or optional 4 Axis coordinated motion control. True Interpolation.
• Limit Switches on all extreme ends of X, Y, & Z travel allowing you to confidently test your program without having to worry about an axis travel to its end and causing damage to machine.
• Tool Height Compensation with Automatic Quill Retraction for easy R8 collet tool change
• Tool Cutter Radius Offset Compensation
• Run your tool path from any line on your program
• Easy to Use Jogging Features and Feed Control
• Jog-Input Command automatically writes each line of your toolpath as you manually jog each axis by pc mouse, keyboard, or the optional hand held remote control joystick to save as a program for repeat use.
• Software Power Feed capabilities on X, Y, Z, and W with one click of the pc mouse for exact relative driving distance.
• Hooks up to your PC, comes pre-built from the factory
• Pre-engineered for you when it comes to pitch and resolution. No axis or motor tuning needed at setup. No additional parameters set-up required. Display resolution is 0.0001 micro-stepping travel. Just start using it.
• Runs files from popular CAD-CAM softwares that produce standard G-Codes such as Mastercam, Surfcam, etc to machine and engrave intricate and detailed parts at your command
• Load DXF and IGES files from graphic programs such as CorelDRAW into CAM softwares to machine or engrave detailed parts from scanned images
• Digital Read Out Display of your X, Y, Z, (and optional W) counters on your computer screen in INCHES or MILLIMETERS using your PC mouse, keyboard, or our optional Hand Held Remote Control.
• Easily build a file of commands such as drilling operations to machine simple parts without the need to learn or use a CAD-CAM program
• Can add a power feed on the knee lift, engraving attachment, fourth axis, computer control coolant assembly for the machine's built-in tank, and quick tool change, from our line of accessories to the CNC Supra Mill
• Optional "Computer" Controlled Variable Spindle Speed, save time without having to change the belt, and program your spindle's speed in the Master Software. It also allows you to disengage power from the axis motors to allow for manual machining while still retaining computer control of the spindle. (Runs on single phase 240 vac.)
• Easy user-friendly setup for any beginner or experienced machinist. Easy to learn and operate. See our testimonials.
• Comes with Tool Box, front and rear chip guard, and a One-Shot Lubing System on the mill's table ways and X & Y ball screws.
• Backed up by our CNC MASTERS ONE YEAR WARRANTY or extend it for two more years.
• Unlimited "life-long" operational Tech Support step-by-step trouble shooting and walk-through process by email or phone support Monday-Friday PST during normal business hours for as long as your company owns the machine.
• Easy to repair, replace parts, and maintain unlike costly servo systems which need to be serviced.
• Free Master Software Updates upon request upon request for as long as the hardware can support it.
• Your choice in 2 HP Spindle Motor 8 speeds, or 3 HP computer controlled variable spindle speed. Save time without having to change the belt, and program your spindle's speed in the Master Software through G-codes, simple english conversational commands, or on/off with your PC mouse. It also allows you to disengage power from the axis motors to allow for manual machining while still retaining computer control of the spindle.
• Discounted Prices for Existing Customers of CNC MASTERS

The CNC SUPRA Additional Machine Features:

• Super Strong Column and Base
• Low Maintenance Machine
• Large Chromed Diameter Quill
• Spindle Head is internally cooled
• High Precision Class 7 Spindle Bearings
• X, Y, Z Zero-Backlash Ball Screws with Pre-Loaded Ball Nuts
• X, Y, Size 34 Micro-Stepping Motors at 1500 in/oz of torque with Hand Wheels
• Z, Size 34 Micro-Stepping Motor at 1200 in/oz of torque with Hand Wheel
• Step pulley 8 speeds belt adjustment or variable spindle speed computer controlled
• High grade cast iron frame
• Dovetail guide ways
• Ground table t-slots
• Hardened & ground ways
• Hardened & ground table
• Tilting & rotating head
• Built-In Coolant Column Base (Computer Control Pump, Hose, and Flex Nozzle mounted to the side of quill--optional accessory)
• Built-In One-Shot Lube

The CNC SUPRA (9x49) or (10x54) Specifications

The CNC SUPRA Tolerances

The CNC SUPRA Control Unit

The Control Unit is controlled by the user friendly MASTER software, which runs on any IBM-AT compatible computer with at least 500Mhz and Windows VISTA and XP (32 bit only on both systems). It communicates with the CNC Control Unit through USB port the standard in computer communication. The MASTER software features a main windows panel interface that will allow the novice user to easily control the program and the machining of parts.

The MASTER software runs standard FANUC G-Code files from CAD-CAM softwares such as SmartCam, SurfCam, etc. The Master software also features its own programming language. It uses plain conversational language like “Move, Absolute, Incremental, Repeat, Rapid, Feed, Spindle on, etc.,” which are all self explanatory. See our complete specs on the CNC SUPRA Master Operating Software by clicking here.

The CNC MASTERS Master Operating Software for the CNC Jr, CNC Baron, and CNC SUPRA Milling Machines

	PROGRAM SAMPLE:
	001 ABSOLUTE
	002 MOVE X0 Y0 Z0
	003 SPINDLE ON FORWARD SPEED 400 RPM
	004 COOLANT ON
	005 INCREMENTAL
	006 CALL ROW 10 TIMES
	007 SPINDLE OFF
	008 COOLANT OFF
	009 MOVE X0 Y0 Z0
	010 END /MAIN PROGRAM
	011 ROW /BEGIN SUBPROGRAM
	011 MOVE Y-0.6
	012 CALL DRILL_COLUMN 10 TIMES
	013 END /ROW SUBPROGRAM
	014 DRILL_COLUMN /BEGIN SUBPROGRAM
	015 MOVE X.6
	016 FEED 1.0 /INCHES PER MINUTE
	017 MOVE Z-1.1
	018 RAPID
	019 MOVE Z1.1
	020 END /DRILL CALL

	N00 ABSOLUTE
	N01 MOVE X1.0 F5
	N02 CCWCIRCLE X1.5 Y0.5 I0 J0.5
	N03 MOVE X1.5 Y1.5
	N04 CCWCIRCLE X1.0 Y2.0 I-0.5 J0
	05 MOVE X0 Y2.0
	N06 CCWCIRCLE X-0.5 Y1.5 I0 J-0.5
	N07 MOVE Y0.5
	N08 CCWCIRCLE X0 Y0 I0.5 J0
	N09 END

Other Master Software Features:

• Tool Height Compensation with Auto Quill Retraction for easy R8 Collet change out
• Relative driving of any precise distance with one click +/- on the chosen axis
• Go From Line Command--allows the user to start his toolpath from any line on his program
• Beep End Program--a beeping sound from the computer to notify the user that the job is done
• Peck Drilling Cycle
• Mirror Command--runs the opposite direction of the written toolpath.
• Go Home--recounts its steps back to your Zero position
• Saved Home Positioning--never lose your Zero position again when machining the same part
• Pre-Set--allows you to begin machining at any given value on the X Y Z counters other than zero
• Tool Radius Offsets
• Intuitive Interface with axis jog buttons placed in the viewpoint of the cutter to avoid confusion of direction

USE the CNC Jr., CNC Baron, or the CNC SUPRA with POPULAR CAD-CAM SOFTWARES

	G00 = Position (Fast speed)
	G01 = Linear interpolation (Feed speed)
	G02 = Circular interpolation (CW)
	Format: X__Y__I__J__ I,J are relative distance from start to center.  Incremental Z can be added for helical designs.
	G03 = Circular interpolation (CCW)
	G17 = Cancels G60 Command
	G27 = Reference point return check
	G40 = Tool Radius compensation off
	G41 = Tool Radius compensation left
	G42= Tool Radius compensation right
	G60 = Switch data from Y to W * radius factor
	G70 = Input in inches
	G71 = Input in millimeter
	G80 = Cancel Peck Drilling Cycle
	G83 = Peck Drilling Cycle, Format: X____Y____Z____R____Q____P____F____
	G90 = Absolute move (Modal)
	G91 = Relative move (Modal)
	G98 = Return to initial point in canned cycle
	G99 = Return to R point in canned cycle
	M00 = Stop
	M02 = End routine
	M03 = Spindle on
	M04 = Spindle off
	M06 = Spindle reverse
	M08 = Coolant on
	M09 = Coolant off
	M30 = End program

	N01 \ THIS PROGRAM CUTS 2-1/5-2 THREAD USING A 1/2 DIA. 60 DEGREES DOUBLE
	N02 \ ANGLE END MILL CUTTER
	N03 SPINDLE ON SPEED 1000 FORWARD
	N04 COOLANT ON
	N05 G00 X1 Y1.2480 Z0
	N06 CALL THREAD 5
	N07 SPINDLE OFF
	N08 COOLANT OFF
	N09 END
	N10 THREAD
	N11 G90
	N12 G02 X1 Y1.2480 Z-0.5 I1.0000 J0.0000 F5
	N13 END

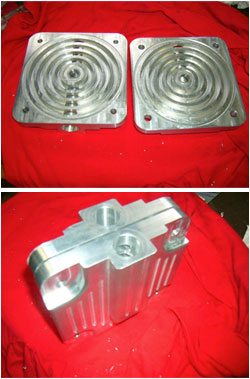

A testimonial from our customers, Holgate Enterprises in Florida using a CAD-CAM software on his CNC Supra Mill:

Hi CNC MASTERS,

I wrote the program on BOBCAD. It was a little tricky but basically I used it for a training exercise kinda like mountain climbing! Bobcad uses what they call "Solids". Under this category are "Primitives". There are five choices of these primitives: Sphere, Cube, Cone, Cylinder and Torus.

When using these, you must (always) instruct the program the size of these"parts". A chain is made up basically of Torus's and Cylinders. The torus being the ends (left and right) and the center portion is the cylinders. Unfortunately, the program will not write a half a torus. However, one can draw the whole torus and then"erase" half of it. After the first "Link" is successfully drawn and verified using the "render" command, then its just a matter of copying the link, pasting it (in the correct numerical distance to the right), rotating it 90 degrees (every other link is either vertical or horozontal.) and so on.

Upon completion, it has to be rotated every 90 degrees and ran again until the four quadrants are completed. Also, if you examine the picture, at the corners the two vertical sides finish with a half link turned 90 degrees and the top and bottom ones (shorter) must "meet" these corners too. So, as you can imagine, it was a real task and involved large degrees of visualization and so forth.

CAD-CAM software

CAD-CAM softwares are an integral part of the CNC Masters Machinery and of the CNC world of machining in general. Yes, you can use simple commands found on the Master operating software to program your CNC Masters machines, but if you are planning to machine a complex design then investing in a CAD-CAM software will be an invaluable tool as much as your CNC Masters machinery. 3D design and translation of your drawing into G-codes will save you extensive downtime instead of writing your g-codes files from scratch and reducing mathematical errors in design.

Check out this quick Video Demo how CAD and CAM software creates your tool path programs to machine your applications on your CNC MASTERS machinery.

We offer the following CAD CAM Soft wares that work well with your CNC Masters machinery and are competitively priced!

• RHINO CAD - Use to draw your applications in 2D or 3D for milling or turning
• VISUALMILL CAM - Made for CNC Milling Machine applications

VisualMill 6.0 CAM Software

If you have a CAD software already and need a CAM software to produce your G-Codes, the VisualMill 6.0 will be a worthy investment to generate your drawings into G-Codes. The Master Operating software of your CNC Masters milling machines will read your codes and machine your part according to your drawing.

Windows-based 2½, 3 (and 4th axis toolpaths; comes as an ADD-ON) axis solid/surface/STL manufacturing system. Includes VisualMill 6.0 CAM engine, DXF & IGES translator, other CAD imports and configurable post-processor. Includes email and web-based support.

This is a general purpose machining program targeted at the general machinist. This product is ideal for the rapid-prototyping, hobby and educational markets where ease of use is a paramount requirement. Packed with sufficiently powerful manufacturing methods this easy to use package is not only effective but also attractively priced for the budget conscious or entry level buyer.

Available file imports include: IGES, Rhino, Dxf, Dwg, STL, VRML, RAW, Point Cloud.

• 2D and 3D CAD Creation
• Layers
• Unlimited Undo
• Clipboard
• True Type Font Text
• Measuring Tools

• Pocketing
• Profiling
• Engraving
• Facing
• V-Carving
• Hole-Milling
• Thread Milling

• Horizontal Roughing
• Parallel Finishing
• Horizontal Roughing

• Automatic Hole Selection, Sorting
• Drilling
• Tapping
• Boring
• Reverse Boring
• User-defined drilling cycles

• Toolpath Animation
• Cut Material Simulation

• User customizable post-processor generator
• User defined cycles
• Helix Output
• Spiral Output
• Simulate Cycles

• Direct numerical control

• GCode Analysis Verification Tool

• 4-Axis Indexed Machining
• 4-Axis Continuous Rotary Machining
• 4-Axis Continuous Rotary Engraving
• 4-Axis Parallel Roughing

CNC Master's Supra Vertical Mill Accessories

Hand-Held Remote Control

Our most popular CNC accessory, now only $485.00!  Almost every customer orders one with their CNC Masters Milling Machine.

Our exclusively designed Hand-held Remote Control gives you greater ease in controlling the CNC Jr., Baron, or Supra during initial setup as well as during the operation of the machine without using your computer keyboard. Most importantly--you can jog your axes while never having to remove your sight off the part. Machine simple slots, do profiles, and drill holes without booting up your computer.

The Hand-Held Remote features:

• Knobs for spindle and feed speed control
• Joystick to jog any of the selected three or four axes which allows the CNC Jr./CNC Baron/CNC SUPRA to be operated without having to touch your keyboard or manually cranking the Hand Wheels on the motors.
• Micrometer wheel which is located on the bottom of the remote.  This feature allows you to position any axis in a minimum increments of approximately .0002" and two added multiple selections to move medium speed and faster speed.
• "GO" button from where you can run your program loaded on the host computer.
• "ZERO" button which allows you to remotely zero any axis during setup.
• Red "KILL" button is located at the top of the remote to be used in the case of an emergency stop.

The Hand Held Remote comes with Velcro on it back for easy mounting on the machine and plugs in directly into the Control Unit through serial port.  It is worth adding this accessory to your CNC MASTERS Mill or it retrofit kits for its added convenience and time saving features.

Variable Spindle Speed Computer Control for CNC Jr. PLUS or the CNC Supra Mill

The optional variable spindle speed control allows you to power on/off and select any speed through the MASTER software.  This feature becomes very useful for the user needing automated control of the spindle speed.  This feature will save the user time from having to stop the tool path program in order to manually adjust the belt and pulley to obtain a different desired spindle speed.   The control is a three phase power inverter and requires 240VAC single phase power to operate.  The belt and pulley system are kept on your machine for added convenience of changing the torque on the spindle.  For example, the user needs a very low spindle speed which he can get using the variable feature, but the user also needs a high torque; adjusting the belt will give the user the extra flexibility of adjusting the torque on the spindle if the need of adjusting the torque should ever arise.  The variable spindle can now also be powered on/off and maintain speed control through the Master Software or Hand Held Remote Control while having the motors disengaged to manually machine a simple part if needed.

The CNC SUPRA with "computer controlled variable spindle" is powered on single phase 240 vac .

Engraving Attachment

(Above) One of our oldest customers of roughly 12 years recently sent us these engraving pics from there CNC Jr. Milling Machine. Their testimonials are the kind that keep us happy and pushing to drive some of the best relationships in the business.
	With the CNC Jr., Baron, or Supra, there is no need to have a separate engraving machine. The optional engraving attachment combined with the 3-D machining ability of the CNC Jr., Baron, or Supra, offers engravers creative opportunities not possible before. Furthermore, with the 4th axis rotary table, you can now engrave on curved surfaces!  For example, you could scan the autograph of your favorite baseball player and engrave it on a bat, or you could have a pool cue engraved with your own unique design.  CNC MASTERS offers Three Choices: CNC Jr/Baron Engraver Attachment The engraving attachment, which is a 3/4 HP Router that has a maximum speed of 23,000 RPM, mounts on the same spindle axis. It can be quickly attached or removed with a single clamping screw.  You will have 11" of throat space or distance from the table to your router to machine your intricate details on your part.  The router comes with a 1/4" collet so any tool with a 1/4" shaft will work.  You can also use a reducing adaptor from 1/4" shaft to 1/8" holder for your tools that have 1/8" shaft.  (The Router Attachment is designed for the CNC Jr. or Baron Table Top Mill.) AIR TURBINE Air Spindle Attachment (can be used for the CNC Jr, CNC Baron, or CNC Supra Mills) You also have the option of the Air Driven Spindle with a maximum speed of 40,000 RPM, for jewelry, mold making, and fine machining and engraving such as designing a three-dimensional face for a doll or action figure.  The Air Driven Spindle requires your air compressor to go to 90 PSI at 3 cubic feet/minute of air volume to obtain maximum RPM and connects to your spindle with R-8 collet.   The AIR TURBINE Model 625JS -- 3/4" shank, 1/4" collet size for cutting tools.  The jewelry design in this picture was from our satisfied customer in the jewelry business using the CNC Jr Mill and the Air Turbine Air Spindle. Design is by Nouveau, Inc. in Bersa, OH.

(above) These pictures were sent to us from another satisfied customer using the CNC Supra along with 4th Axis and Supra Engraver.

...."I decided to buy the rotary table at same time as the CNC SUPRA machine itself.  Thank the
Lord 'cause about a month later I had a gear cutting job come in for 100 gears at $150 a pop!  Paid for the thing 15 times over! The Supra Engraver was a great idea!" --Ed Holdgate, Florida USA

4th Axis Rotary Table

TRUE CNC FOURTH AXIS CONTROL! The ability of our CNC Control Unit to interpolate one or multiple axis with the 4th axis 6" rotary table, offers more options for machining difficult parts. Our 6" rotary table can be easily jogged and has a minimum motion of 1/100 degree. It can be secured on a horizontal or vertical position.  The fourth axis motor is the same as the X, Y, Z motors which are size 34 with 1200 in/oz. of torque and is programmable in the same manner as the X, Y, Z axes.  The the motion of the fourth axis can be interpolated with the X, Y and Z. The rotary table is easily removable from our cnc mills when three axis machining is needed only.

Quick Tool Change

Tool change with height compensation. With the CNC Jr., Baron, or the Supra you can machine production parts that require several tool changes. You can program up to ten different tools. The MASTER software will automatically adjust the Z axis for each tool change. The tool height compensation complements our manual quick tool change system. It only takes a few seconds to release and replace a new cutter from the master holder. This smart investment will pay off in no time. CNC Masters is proud to bring you two options to choose from, the quick tool change system by Royal Products or quick tool change system by Billet Designs.

Your Choice.....

Billet Designs (Kit price: $1,195.00. Purchase with CNC Masters Mill $1095.00.)

Call 1-877-262-8895 or email us sales@cncmasters.com to place your order.

• Designed to be used with the Billet Designs R8 Quick Change Master Holder.
• Maximum Capacity (Decimal Inch)  .5120"
• Minimum Capacity (Decimal Inch)  .0390"
• Integrated design - avoids chuck falling off.
• Keyless - so there are no keys to keep track of or failing.

Additional ER25 Holders, $188.00 each.

Royal Products (Master Holder: $515.00; End Mill Holders: $160-$170 each.)

Master Holder and End Mill Holders sold independently

Quick Tool Change Features:

• Once installed, tools can be changed in seconds.
• Short overhang and positive drive permit many milling and drilling operations.
• As simple to install as an R8 end mill holder; no machine modification necessary.
• Female taper of body ground to .0002" TIR in relation to R8 taper.
• Male taper of individual tool holders ground to .0002" TIR in relation to tool holder diameter.
• Tools are easy to remove and install with one hand.
• Very little clearance is needed between the tool and workpiece when changing tools. This greatly reduces the amount of time spent moving the table or retracting the quill when changing the toolholders.
• The body can be left in the spindle, reducing wear on the spindle from constant tool changes.
• Tool is designed for light/medium-duty milling. We recommend using a solid end mill holder for heavy milling (5/8" and larger).  Note: A collar locking screw is provided on each unit and should be engaged for the following applications: Operation above 3,000 rpm.  When milling diameters of 3/4 " or larger. When performing heavy milling.
• Made in the UK.

We also carry a line of tooling for your CNC Supra:
