CNC MILLING: CNC JR. Table Top Mill®

cnc table top mill


CAD/CAM SoftwareSupra Mill Accesories
Details Features Tech Specs Control Unit Videos

The CNC Jr. Table Top Mill Will Help Get Your Projects Done Faster

There might be something essential missing from your garage or workstation. Whether you are a hobbyist or a businessman with a small to medium-sized enterprise in need of machine parts, the CNC Jr. Table Top Mill is the perfect choice for you.

Compact

This table top mill has the power and performance of our CNC Bridgeport-type sized machine, without the large size. Whether you use it in your man cave or it ends up in your shop. Either way, you do not want to take up more room than what is necessary.

cnc table top mill machine

Versatile

We have received rave reviews about the CNC Jr. table top mill, from engineers, research institutions, high schools, universities, and small business owners who need to mass produce parts but are tired of paying someone else to do it. It is also popular with hobbyists, who are now able to have more fun than ever before since entire weekends are no longer spent trying to get that one part just right.

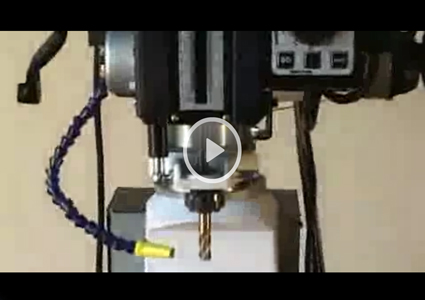

CNC Jr. Table Top Mill Video


Easy-to-Use

The CNC Jr. table top milling machine arrives pre-built from our factory, and it easily hooks up to your computer. You will be able to master the software in no time at all, and you will be ready to machine parts in a matter of minutes.

Precise

Our software program allows you to get the cuts you want without a lot of time spent measuring and then re-cutting. Whether they are parts for that boat you are building for fun or important components for a research project, you need to get them done so you can get going with the other tasks you need to do.

Run your shop – or have fun with your hobby – for less. How much money have you wasted sending your parts to someone else to have them fabricated? How much time have you wasted on projects that you ended up giving up on and throwing away because you could not get the parts just right? With the CNC Jr. table top mill, you will not have to deal with these problems ever again.

The CNC Jr. Table Top Mill is Offered by CNC Masters with pride!

We are an American company based in Irwindale, California. We back our products with a hand-tested quality check, stellar e-mail or live telephone technical support, and a one-year warranty.

No shop – or project – is complete without the CNC Jr. table top mill, so order yours today.

The CNC Masters Testimonials:

CNC Table Top Mill AccessoriesThis picture was given to us by a satisfied customer, John Russell of Ruscool Electronics Ltd. from New Zealand using the CNC Jr. Mill. The CNC Jr. Mill is a popular machine that is purchased by many customers worldwide besides the USA. We take our aftersales support very seriously regardless if you are in the USA or abroad. These are just some of the countries that represent our customers who have purchased the CNC Jr. Mill or the CNC Jr. Retrofit Kit: South Africa, New Zealand, United Kingdom, Gabon, Thailand, Japan, Mexico, El Salvador, Philippines, Spain, Italy, Israel, Germany, Norway, Sweden, Vietnam, South Korea, Australia, Canada, Columbia, Argentina, Brazil, Puerto Rico, and Peru just to name a few!

"Many of the parts I have produced on much larger and more expensive machines could have been produced on the CNC Jr. The benefits of the CNC Jr. are less cost and less size. When we are looking at new machinery, we sometimes forget that the concrete these machines sit on is not free." – John Kitchens, Dallas, Texas

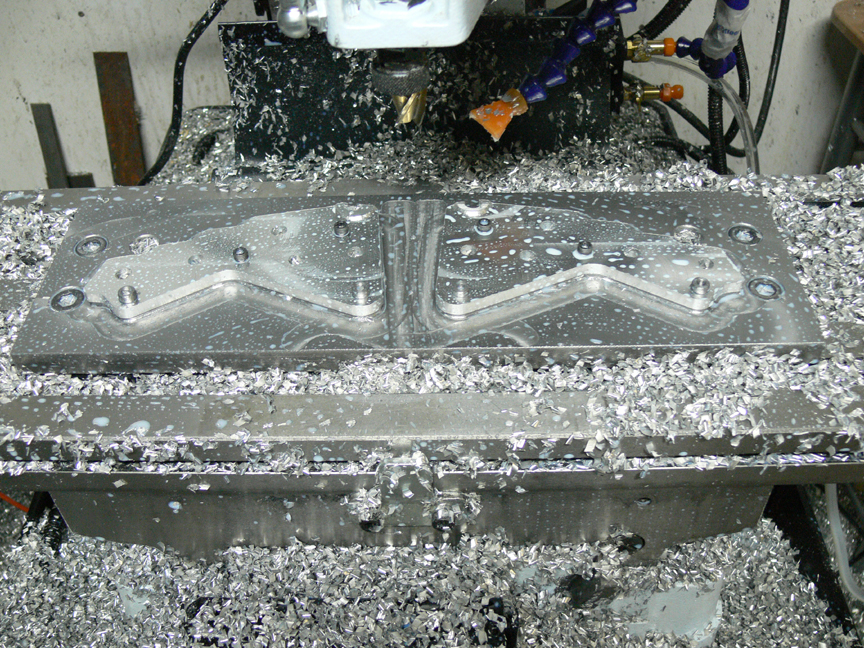

These pics were given to us from Avro

table top millcnc mill table toptable top cnc jr

Enterprises in Ontario, Canada. He said it took him only 15 minutes to machine these two aluminum frames (third pic on right) using the CNC Jr. desktop milling machine.

"Being a hobbyist who enjoys designing RC model boats from the ground up, I have found the CNC Masters Milling Machine to be indispensible for the creation of custom design fittings, which in turn allow me to fit out my craft with one of a kind parts." – Mark Moon, Queensland, Australia

Click here to view more of our testimonials.

The CNC Masters CNC Jr. Table Top Milling Machine

The CNC Jr. table top mill combines the high quality and power of our CNC Bridgeport-sized machines with space efficiency and ease of use. Machinists of any type always benefit from powerful machining products and shops are always cramped. By using the CNC Jr. Table Top mill, work areas are larger without sacrificing craftsmanship.

CNC Masters is proud to include the CNC Jr. table top mill in our product lineup, as we know it consistently helps our customers get work done the first time. Our customers range from individual hobbyists to larger businesses, even academic research institutions. This product allows any user to save time by creating their own prototype parts or producing the perfect components in-house.

Due to the simple and easy-to-use controls, the CNC Jr. table top mill can be set up and running within minutes of delivery. The CNC Jr. will arrive pre-built, eliminating any mechanical installation or time-wasting assembly procedures. Once the machine is in place, it will be ready as soon as a computer is connected. Furthermore, the bundled software is simple and easy to master. Difficult and complex designs are easily manipulated and controlled so cuts are done right the first time, regardless of the application.

Any CAD-CAM software is compatible with our table top mill as long as it produces standard FANUC based G-codes. Customers have employed AutoCAD, Alibre, MasterCam and others to produce G-codes that our Master Software uses to mill and cut parts. Different file formats, such as IGES, DXF, and DWG, can be imported and read by the Master Software.

As with any of our products, CNC Masters provides unlimited technical support for our customers. Every one of our products is manufactured and tested in the United States and the CNC Jr. table top milling machine is no exception. We welcome our customers to contact us with any questions. We are available for support through email for non-urgent situations or over the phone for any type of concern. Please contact us at any time to receive prompt and professional assistance.

With the CNC Jr. table top mill, projects are finished on time and for less. Regardless of the application, the CNC Jr. will provide the same power as a larger machine but with a far smaller footprint. Complete any workshop with the CNC Jr. mill today.

We're OVER STOCKED on CNC Baron Mills! To upgrade call or email for details.

baron cnc milling machine

CNC Baron Mill Upgrade Product Page

There might be something essential missing from your garage or workstation. Whether you are a hobbyist or a businessman with a small to medium-sized enterprise in need of machine parts, the CNC Jr. Table Top Mill is the perfect choice for you.
Manufactured by: CNC Masters
$5,423 New

CNC Jr. Table Top Mill Features

  • The CNC Jr. Table Top Mill is designed to work with 32 or 64 bit operating systems: Windows 7, Windows 8, or Windows XP Pro with SP2 or better through your standard USB port.
  • This table top mill features powerful X, Y, and Z-axis micro-stepper motors are size 34 with 1200 in/oz. of torque. Stronger torque coupled with micro-stepping motion allows the CNC Jr. to perform accurately without losing steps.
  • The minimum possible motion for this table top mill is .0001” with a minimum speed of 0.5” per minute. The maximum speed is 100” per minute on your Rapid Settings with ramp down effect to keep the machine from jerking. Full 3 Axis or optional 4 Axis coordinated motion control on bipolar motors--far superior over unipolar technology when it comes to torque and power. True Interpolation!
  • Hand-Wheels on each axis for manual option machining with motor disengage feature to retain spindle speed control (applies to the CNC Jr. table top mill with variable spindle speed control).
  • The CNC Jr. Table Top Mill features X & Y Axes Zero Backlash Ball Screws with pre-loaded ball nuts to eliminate play on the table and saddle travel, and provides precision machining. These custom-made precision ball screws allow for precision conventional and climb milling operations and accurate circular and contour cuts without time consuming setups.
  • Z Axis pre-loaded arrangement to eliminate backlash on the up/down travel.
  • X & Y Direct Drives--no timing belts to adjust. This results in smoother operations and ensures accuracy unlike pulley and belt drive methods which can cause the belt to buckle causing inaccurate results. This unique design of direct drive keeps the user without having the need to change the belt or adjust as it wears down.
  • This table top mill features Home Reference Sensors on the X, Y, & Z which saves your home/zero position as the first line of your program. This feature allows you to quickly return to the home position on any program without having to manually zero your three axes again.
  • Limit Switches on all extreme ends of X, Y, & Z travel allowing you to confidently test your program without having to worry about an axis travel to its end and causing damage to machine.
  • Tool Height Compensation with Automatic Quill Retraction for easy R8 collet tool change
  • Tool Cutter Radius Offset Compensation
  • Run your tool path from any line on your program
  • Easy to Use Jogging Features and Feed Control by pc mouse or keyboard
  • Jog-Input Command automatically writes each line of your tool path as you manually jog each axis by pc mouse, keyboard, or the optional hand held remote control joystick to save as a program for repeat use.
  • The CNC Jr. Table Top Mill features Software Power Feed capabilities on X, Y, Z, and W with one click of the pc mouse for exact relative driving distance.
  • Hooks up to your PC, comes pre-built from the factory, and is completely tested before shipping out.
  • Pre-engineered for you when it comes to pitch and resolution. No axis or motor tuning needed at setup. No additional parameters set-up required. Display resolution is 0.0001 micro-stepping travel. Just start using it.
  • Runs files from popular CAD-CAM softwares that produce standard G-Codes such as Mastercam, Surfcam, etc to machine and engrave intricate and detailed parts.
  • Load DXF files from graphic programs such as CorelDRAW into CAM softwares to machine or engrave detailed parts from scanned images.
  • Easily build a file of commands to machine simple parts such as drilling operations without the need to learn to use a CAD-CAM program.
  • Digital Read Out Display of your X, Y, Z, (and optional W) counters on your computer screen in INCHES or MILLIMETERS using your PC mouse, keyboard, or our optional Hand Held Remote Control Joystick.
  • Can add fourth axis, engraving attachment, coolant, quick tool change, and splash guard shield from our line of accessories to the CNC Jr. Table Top CNC Mill
  • User-friendly setup for any beginner or experienced machinist. Easy to learn and operate. See our testimonials.
  • A 3" U Type Angle Vise, JT6 Drill Chuck with Key and Arbor, Carbide Tipped Surface Cutter come standard with every Jr. Table Top Mill.
  • The CNC Jr. Table Top Mill is backed by our CNC MASTERS ONE YEAR WARRANTY or extend it for two more years.
  • Unlimited "life-long" operational Tech Support step-by-step trouble shooting and walk-through process by email or phone support Monday-Friday PST during normal business hours for as long as your company owns the machine.
  • Easy to repair, replace parts, and maintain unlike costly servo systems that need to be serviced by a trained technician.
  • Free Master Operating Software Updates for as long as the hardware can support it.
  • Discounted Prices for Existing Customers of CNC MASTERS. Check out our CNC Jr. Table Top Mill Package Prices!

Product Page | Features | Specifications | Tolerances | Control Unit
Master Software | The CNC Jr. Accessories | Current Prices and Package Deals

The CNC Jr. Table Top Mill Specifications

Model

CNC Jr. Table Top Mill

X Axis: Left/Right Table Travel

19" 485mm

Y Axis: Forward/Back Table Travel

7" 175mm

Z Axis: Spindle Up/Down Travel

5” (127 mm)

Spindle Nose to Table (Maximum)

18" 480mm

Motor Power

2 HP

Overall Height (w/o stand)

43-1/2" 1100mm

Machine Stand Height

30" 760mm

Drilling Capacity

1-1/4" 32mm

End Mill Capacity

3/4" 20mm

Swing

15-7/8" 405mm

Spindle Taper

R-8

Diameter of Spindle Sleeve

3" 75mm

Head Swivel

360 degrees

Diameter of Column

4-1/2" 115mm

Overall Length (end of table to end of X motor handle)

38.5"

Overall Width (back of spindle motor to Y motor handle)

38"

CNC Jr. Table Top Mill Spindle Speed

12 speed (120-3000rpm)

Working Area of Table

28-3/4 x 8-1/4"

Max Movement Area

60" (1524 mm) x 38" (965.2 mm)

CNC Jr. Table Top Mill Weight

700 lbs.

Table Top Milling Machine Power Requirements

CNC Jr. Table Top Mill

110VAC dedicated circuit with a NEMA 5-15R

208, 220 to 240 VAC, single or three phase with ground @ 15 amp service required

CNC Jr. Table Top Milling Machine Tolerances

Accuracy

+/- 0.003" in 12" (+/- 0.00025 per inch)

Repeatability

0.0005"

Resolution

0.0002" (or .01 mm)


NOTE: The CNC Control Unit is available in either 110 or 220VAC models. The 110 VAC model will be shipped unless otherwise requested.

Product Page | Features | Specifications | Tolerances | Control Unit
Master Software | The CNC Jr. Accessories | Current Prices and Package Deals

CNC Jr. Table Top Mill Control Unit




The Control Unit for the CNC Jr. Table Top Mill is a microcomputer based micro-stepper motor driver with 4D interpolation capabilities. It accepts motion commands from your host computer through a standard USB port, making it easier for the user to connect to his computer in the industry. The Control Unit can drive up to 4 motors. The Control Unit is mounted directly on the back of your CNC Jr. Mill out of your work space unlike other models that require a separate stand. Other optional outputs are the coolant, and spindle controls. The power requirement are 5 amperes at 115VAC.

Upon request for international orders, we can re-wire the Control Unit to meet 220-240vac standards at no extra charge.


Product Page |  Features |  Specifications |  Tolerances |  Control Unit
Master Software |  The CNC Jr. Accessories |  Current Prices and Package Deals

Explore the CNC Max

CNC Jr. Table Top Mill

visualturn1.0
One Page View of Entire Specs and Description
visualturn1.0
PRICES AND CATALOG


Operating Software

CNC Jr. Table Top Mill Machine

See More Software Videos

Need Financing?



One-Year Warranty and On-Going Support

All components and accessories on the CNC Jr Table Top Mill are individually tested and the entire milling center is tested for quality assurance before shipment. The CNC Jr Table Top Mill Center is backed up by our ONE YEAR LIMITED WARRANTY! Tech Support by email at sales@cncmasters.com or phone (626) 962-9300 is available during normal business hours Monday through Friday, PST. From setup to any questions you may have, tech support is available free of charge for as long as your company owns the CNC Jr Table Top Mill.

The CNC Jr Table Top Mill and all other products that CNC Masters sells will be backed by our one year limited warranty, which covers defects in electronic components, materials, and workmanship.

For tech support, we can be reached at (626) 962-9300 during working hours PST, or email us: sales@cncmasters.com. Tech Support by email or phone will ensure you a step-by-step trouble-shooting process to solve your tech issues. Please see our Terms & Conditions of Sale before placing an order.
