Prices / Order Now >> Birmingham Lathes Catalog/Quote

Birmingham Lathes Catalogue

Your premier source for CNC Mills, Milling Machines, and home of the CNC Jr. Table Top Mill / Mini Mill and the CNC SUPRA Vertical Knee Mill Machine.

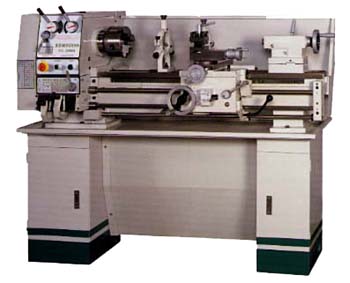

Birmingham Lathe YCL 1236GH

Birmingham Lathe YCL 1236GH
  • 2 HP, 220V, 1 PHASE MAIN MOTOR
  • D1-4 SPINDLE WITH 1 ½” THRU BORE
  • 9 SPINDLE SPEEDS FROM 70 – 1,400 RPM
  • 40 KINDS OF INCH THREADS FROM 112-4 TPI
Full Description and Specs
CALL FOR PRICE

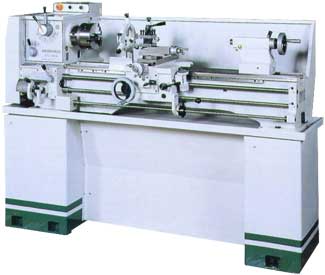

Birmingham Lathe YCL 1340GH

Birmingham Lathe YCL 1340GH
  • PRECISION MAIN SPINDLE LOADED ON HIGH QUALITY PRECISION BEARINGS (2ea) 30212-30210
  • 8 SPEED HEAD STOCK WITH 70 TO 2,000 RPM. SPEED CHANGES BY HEADSTOCK QUICK CHANGE LEVER ACTION
  • PERMANENTLY FILTERED OIL HEADSTOCK BATH PROVIDES CLEAN RUNNING OIL FOR LONG LIFE OF BEARINGS & GEARS.
Full Description and Specs
CALL FOR PRICE

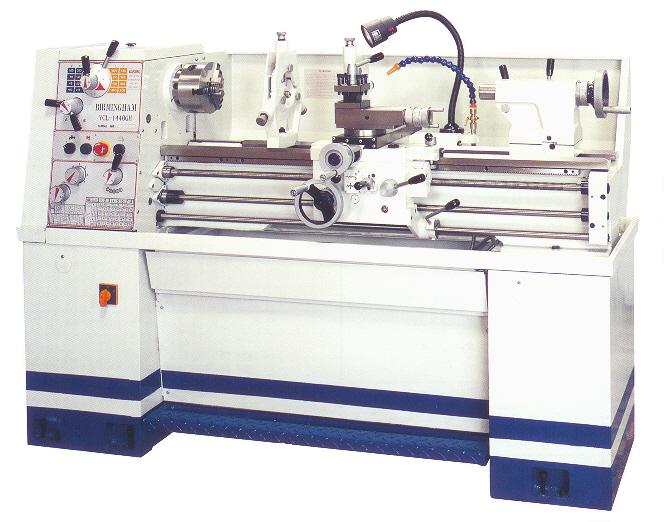

Birmingham Lathe YCL 1440GH

Birmingham Lathe YCL 1440GH
  • 3 HP MAIN MOTOR
  • NO CHANGE GEARS REQUIRED
  • 16 SPEEDS FROM 45 – 1,800 RPM
  • D1-4 SPINDLE WITH 1 1/2" BORE
  • 40 KINDS OF INCH THREADS FROM 4-112 TPI
  • REMOVABLE GAP BED FOR LARGE DIAMETER WORK
  • MAGNETIC CONTROLS AND SPINDLE FOOT BREAK
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe YCL 1640

Birmingham Lathe YCL 1640 & 1660
  • 1 HP, MAIN MOTOR (7 1/2 HP OPTIONAL)
  • ONE-PIECE CAST IRON BASE
  • NO CHANGE GEARS REQUIRED
  • 12 SPEEDS FROM 25 - 2,000 RPM
  • D1-6 SPINDLE WITH 2 9/32” BORE
Full Description and Specs
CALL FOR PRICE

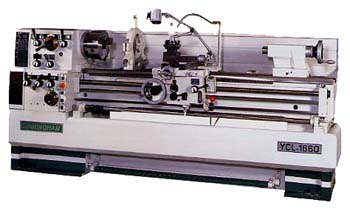

Birmingham Lathe YCL 1660

Birmingham Lathe YCL 1640GH
  • 1 HP, MAIN MOTOR (7 1/2 HP OPTIONAL)
  • ONE-PIECE CAST IRON BASE
  • NO CHANGE GEARS REQUIRED
  • 12 SPEEDS FROM 25 - 2,000 RPM
  • D1-6 SPINDLE WITH 2 9/32” BORE
Full Description and Specs
CALL FOR PRICE

Birmingham LatheDL-1840/1860
Birmingham Lathe DL-1880/18120

  • D1-8 CAM LOCK
  • 10 HP MAIN MOTOR
  • 49 KINDS OF INCH THREADS
  • 16 SPEEDS FROM 16-1600 RPM
  • MAIN SPINDLE HARDENED PRECISION GROUND
Full Description and Specs
CALL FOR PRICE

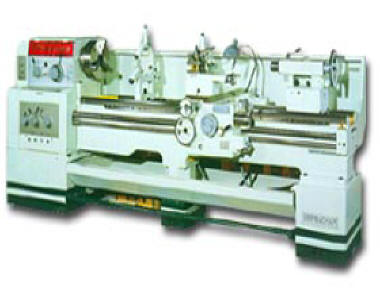

Birmingham Lathe DL 2240/60/80/120
Birmingham Lathe DL 2640L/60L/80L/120L

  • 10 HP MAIN MOTOR
  • 49 KINDS OF INCH THREADS
  • 16 SPEEDS FROM 16-1600 RPM
  • D1-8 CAMLOCK WITH 3 1/8" SPINDLE BORE
  • HANDWHEEL CAN BE DISENGAGED RAPIDLY
Full Description and Specs
CALL FOR PRICE

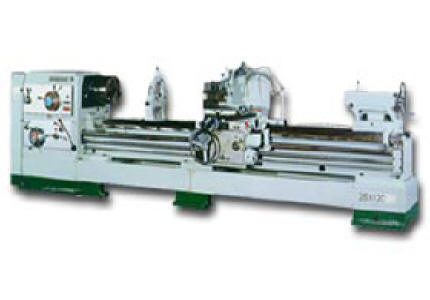

Birmingham Lathe DL 26
Birmingham Lathe DL 32
Birmingham Lathe DL 40

  • 20 HP MAIN MOTOR
  • 73 KINDS OF INCH THREADS
  • 18 SPEEDS FROM 7.5-1000 RPM
  • D1 - 11 SPINDLE WITH 4 1/8" & 5 1/8" LARGE BORE
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe DLC 1640/1660/1680/16120

  • 10 HORSEPOWER MOTOR DELIVERS POWER THROUGH ALL SPINDLE SPEEDS
  • SPINDLE GEARS, SHAFTS AND BEARINGS ARE LUBRICATED BY PUMPED BATH OF OIL
  • INDUCTION HARDENED AND GROUND BEDWAYS
  • D1-8 CAMLOCK SPINDLE WITH 4-1/8" BORE
  • 16 SPINDLE SPEEDS, 26-1,700 RPM
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe DLC 2040/60/80/120 &
Birmingham Lathe DLC 2640/60/80/120

  • ALL HEADSTOCK GEARS AND SHAFTS ARE HARDENED AND PRECISION GROUND
  • POWERFUL 10 HP DRIVE MOTOR DELIVERS POWER THROUGH ALL SPINDLE PSPEEDS
  • SPINDLE GEARS, SHAFTS AND BEARINGS ARE LUBRICATED BY PUMPED BATH OF OIL
  • INDUCTION HARDENED AND GROUND BEDWAYS
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe NDL 1440/1460 &
Birmingham Lathe NDL 1640/1660

  • HARDEDENED AND GROUND GEARS AND SHAFTS
  • OIL BATH LUBRICATED HEADSTOCK AND GEAR BOX FOR SMOOTH QUIET OPERATION
  • INDUCTION HARDENED AND GROUND BEDWAYS
  • D1-6 CAMLOCK SPINDLE NOSE
  • 12 SPINDLE SPEEDS, 32-2,000 RPM
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe NDL 1840/1860 &
Birmingham Lathe NDL 2040/2060

  • FULL LEGTH CAST IRON BASE WITH EASY EXIT SHIP REMOVAL
  • HARDEDENED GEARS, SHAFTS AND BEDWAYS
  • D1-8 CAMLOCK SPINDLE WITH 3-14/" BORE
  • 12 SPINDLE SPEEDS, 16-1,600 RPM
  • POWERFUL 7 1/2" HORSEPOWER DRIVE MOTOR
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe LUX 1340G

  • ASA D1-4 CAMLOCK WITH (1 9/16") SPINDLE BORE
  • HARDENED AND GROUND GEAR HEADSTOCK
  • HEADSTOCK GEARS ARE MADE OF SCM21 (CR-MO ALLOY STEEL) RESPECTIVELY
  • 3 HP, 3 PHASE OR 2 HP, 1 PHASE MAIN MOTOR
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe LUX 1440G

  • ASA D1-4 CAMLOCK WITH (1 9/16") SPINDLE BORE
  • HARDENED AND GROUND GEAR HEADSTOCK
  • HEADSTOCK GEARS ARE MADE OF SCM21 (CR-MO ALLOY STEEL) RESPECTIVELY
  • 3 HP, 3 PHASE OR 2 HP, 1 PHASE MAIN MOTOR
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe LUX 1640G &
Birmingham Lathe LUX 1660G

  • 2 1/8" SPINDLE BORE, ASA D1-6 CAMLOCK
  • MEEHANITE (M) CAST IRON BED
  • HARDENED AND GROUND GEARS & BEDWAY
  • HARDENED AND GROUND SADDLEWAY AND TOP SLIDE WAY
  • SPINDLE TAPER BEARING #30214, #30215
  • 5 HP MAIN MOTOR
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe LUX 1640T &
Birmingham Lathe LUX 1660T

  • 2" SPINDLE BORE, ASA D1-6 CAMLOCK
  • MEEHANITE (M) CAST IRON BED
  • HARDENED AND GROUND HEADSTOCK GEARS & BEDWAY
  • HARDENED AND GROUND SADDLEWAY AND TOP SLIDE WAY
  • SPINDLE TAPER BEARING #30214, #30215
  • 5 HP MAIN MOTOR
Full Description and Specs
CALL FOR PRICE

Birmingham Lathe LUX 18"/21"/25"

  • 10 HP MAIN MOTOR
  • 3 3/16" SPINDLE BORE, ASA D1-8 CAMLOCK
  • TWO SPEED TAILSTOCK
  • HARDENED AND GROUND HEADSTOCK GEARS & BEDWAY
  • HARDENED AND GROUND SADDLEWAY AND TOP SLIDE WAY
  • THE SPINDLE SPEED, 12 STEPS FROM 18 TO 1,500 RPM
Full Description and Specs
CALL FOR PRICE
