CNC Jr. Milling Machine

Since 1990, CNC Masters has been providing top of the line manufacturing products, including versatile and programmable milling machines.

Our Jr. Table Top Mill is a multipurpose, midsized CNC mill, with a custom-made bench top for storage and convenience. It is designed for primary or secondary CNC machining applications, and is meant for those interested in maximum performance and ability while occupying minimum floor space. The CNC Jr. can fit easily into small spaces, yet can machine out applications between 7 inches and 19 inches.

The CNC Jr. Table Top Mill is ideal for small machine shops, research institutions and educational settings, such as high schools and universities. Engineers – as well as one-man operations – are able to mass produce and even create three-dimensional parts using the CNC Jr. Mill. It serves as a great investment for entrepreneurs looking to save money by not contracting orders out.

If you are interested in saving your budget and spending your time wisely, begin cutting parts the same day with the CNC Jr. Table Top Mill, available exclusively through CNC Masters. Contact us today for quotes and pricing, as well as answers to any of your questions or concerns. We are looking forward to assisting you!

Recommended for general CNC machining, 3D surface milling and mold making. It includes a ready to run 3 axis CNC table top mill, user friendly MASTER Software with G-CODE file interpreter, X & Y ball screws with pre-loaded ball nuts, and CNC Control Unit. (requires 115 AC)Full Description& Specs

Streamline your production time with the Royal Products Quick Change Tools Set. Set includes: One Master Holder, and any four end mill holders, mix or match. (To add to the set for additional holders and larger sizes, scroll further down.)

Includes the 3 axis CNC Control Unit, X & Y ball screws with pre-loaded ball nuts, motors for X, Y, and Z with mounting brackets, hand-wheels, and hardware. Detailed assembly instructions, Master software with G-CODE file interpreter.

Basically, all parts used on the CNC Jr. Table Top Mill, except the mill! (approx. 6-8 hours assembly time)Full Description & Specs

CNC Jr. Table Top Mill: This package is recommended for the user who needs a complete machining system on delivery. Package A includes: CNC Jr. 3 Axis Table Top Mill with Machine Stand, Jr Coolant Kit, 52PC Clamping Set, 11 PC R8 Round Collets Set by 16ths, 20 PC Titanium Coated End Mills Set.

Add a Keypad Pendant to Your CNC Mill Order

This MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.  The pendant communicates directly to the MX Software.  Click here for more details.

CNC Accessories

Individual Pieces, More Accesories and Kits:

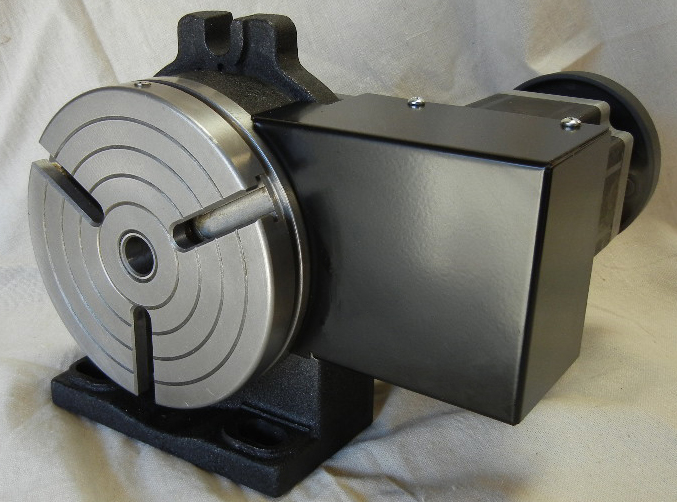

Fourth Axis 6″ CNC Rotary Table, can work with the CNC Jr./Baron or the CNC Supra Milling Machines. The Driver will be built into the CNC Control Unit and operated by the Master Software.
This MX Hand Held Keypad Pendant makes it easy to drive your X, Y, Z and W while keeping your eye on the cutter.  The pendant communicates directly to the MX Software.  Click here for more details.

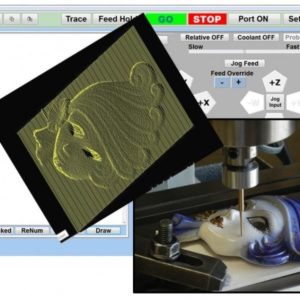

With the MX Digital Probe you can duplicate artsy type 3D applications.  The probe will scan over your part while recording a tool path program for it.  Click here for more details.

Touch Screen CNC

Need a dedicated computer with touch screen to easily drive your machine? We offer the Dell Windows 10 — All In One Touch Screen 19″ Computer and Monitor with Protective Dust Cover and USB connection dedicated to your CNC Masters machine. It will come installed with the MX Software. The computer vesa arm will come mounted to the side of the machine to secure your all in one computer. (COMPUTER IS WIRED FOR 110 VOLTS ONLY.) Learn more!

Machine Stand with Chip Pan and Storage with Latched Door for your CNC Baron Mill (assembly required)
Chip Pan Size: 31″L x 23″W

Engraving Attachments
“AIR TURBINE” Air Driven Spindle Model 625JS with 40,000 RPM, for jewelry, mold making, and fine engraving/detailing (requires air compressor 90 psi) Attachment in: 1/4″ collet w/3/4″ shank
Air Spindle comes with Oil Trap Assembly and Case.

CNC Jr/Baron ¾ HP Router Attachment with 1/4″ collet for Engraving or Fine Machining Detail with 23,000 RPM which can be attached to the Quill of the CNC Jr./Baron Mill only. (requires 110VAC)….

CNC Jr Coolant Kit which includes computer control pump, tubing, magnetic base hose with two spray nozzles, 1-1/2 Gal. container, strainer, and assembly drawing.

Quick Change Tool

Royal Products
Improve your production time.

Easy Change Master Holder

Easychange End Mill Holder, bore size 1/8″

Easychange End Mill Holder, bore size 3/16″

Easychange End Mill Holder, bore size 1/4″

Easychange End Mill Holder, bore size 3/8″

Easychange End Mill Holder, bore size 1/2″

Easychange End Mill Holder, bore size 5/8″

Easychange End Mill Holder, bore size 3/4″

Easychange Drill Chuck Adapter for J33 chuck

Easychange Drill Chuck Adapter for J2 chuck

52PC Clamping Set:5/8″ for the CNC Jr. or the CNC Supra Mills includes:

  • 24 Studs (4 of each): 3″, 4 “, 5 “, 6″, 7″, 8″ long
  • 4 Coupling units
  • 6 Flange nuts
  • 6 Forced steel clamps, 2 each based on stud sets
  • 6 T-Nuts
  • 6 Steel step blocks
  • 1 Wall Rack

20 PC Titanium Coated End Mills Set

  • TIN coated for longer lasting
  • High Speed steel
  • Center Cutting, single end
  • Complete with wooden case.
  • 10pcs: 2 flute 3/16″-3/4″ by 16ths
  • 10pcs: 4 flute 3/16″-3/4″ by 16ths

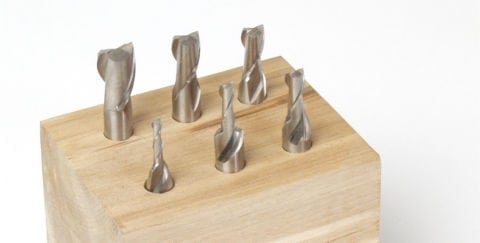

6 PC HSS End Mills Set6 piece HSS end mill set includes 2 flute center cutting end mills in the following sizes: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″. All the end mills have a 3/8″ shank.

CNC Jr./Baron Splash Guard Shield Kit Protect most of your work area from coolant and debris. (Assembly and installation required.)

Software Packages

VisualMill “CAM” Software is ideal for the rapid-prototyping, hobby and educational markets where ease of use is a paramount requirement. Packed with sufficiently powerful manufacturing methods, easy to use package is not only effective but also attractively priced for the budget conscious or entry level buyer.
(WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.)

VisualMill 4th Axis CAM ADD-ON will allow you to create g-codes for the 4th axis that comes with your cnc mill or retrofit kit. If you plan to use a 4th axis rotary table, then purchasing this add-on will be a worthy investment…. (Must be bundled with VM 3 Axis)

RHINO 5.0 “CAD” Software features a 3-D modeling system that can create, edit, analyze, and translate NURBS curves, surfaces, and solids in Windows. VisualMill can read Rhino’s native format files (.3dm) directly (without translation) and generate cutter paths accurately and efficiently, ensuring 100% direct translation capabilities. (Definitely one of the best CAD programs in the market today! Easy to learn and use–and design the intense detailed parts.)
WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.
