CNC 1340 Lathe Catalogue

This CNC Lathe will instantly revert back to its manual capabilities eliminating the need to write a CNC program for short runs. Its advanced CNC capabilities can turn any complex turning application into a simple one that can be programmed and executed accurately many times over on production runs.

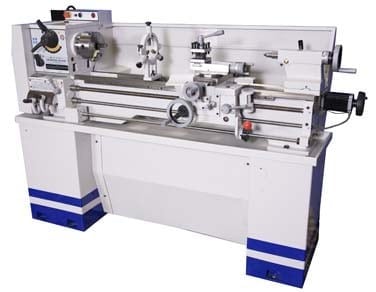

The CNC MASTERS 1340 Lathe is a Gear Head Bench Top mid-size turning center made for primary or secondary CNC machining applications. This 1340 lathe is intended for the user needing the ability and performance of a true CNC working lathe without taking up floor space like larger, expensive CNC machines which require highly skilled trained CNC machinists and service techinicians to tune and maintain the machine for you. Turn, face, chamfer, or machine threads on your part with this CNC Lathe. You can machine just about any application within 13” on the swing or 8″ over the cross slide, and 35.25” on the carriage travel.
THE CNC MASTERS 1340 Lathe Turning Center IS TESTED FOR QUALITY AND PERFORMANCE IN-HOUSE IN IRWINDALE, CA USA.

CNC MASTERS 1340 Lathe: Recommended for general turning, chamfering, facing, boring, inside thread and outside thread. Built-In Turn-Key CNC system for true 2 axis X and Z control with computer variable spindle encoder control and safety limit switches. X and Z axis ball screws with pre-loaded ballnuts and motors installed as direct drives. The user-friendly windows Master operating software is included with user’s manual. Standard 1340 lathe items also included: Motor Pulley, Backplate for Three-Jaw Chuck, Backplate for Four-Jaw Chuck, 3-Jaw Scroll Chuck, 4-Jaw Independent Chuck, Center Sleeve Bushing MT-5 to MT-3, Change gear for threading (needed for manual option threading only), Tool Post Wrench, 4 Way Tool Post, Steady Rest, Follow Rest, Faceplate 11.75″, Machine Stands with Center Kick Plate and Chip Pan. One Year Warranty. Life-long tech support for as long as company owns this equipment. Power requirements: 115vac for controller. 208, 220-240vac, single phase for spindle motor.

Accessories include:
Removable Sliding Splash Guard with Lever Locks,
Wedge-Type Quick Tool Change Tool Post on machined T-Nut with 5 holders,
Computer Control Coolant Pump with hose, container, and flex nozzle, speed, jogging, and micro-positioning.

CNC MASTERS 1340 Lathe: Recommended for general turning, chamfering, facing, boring, inside thread and outside thread. Built-In Turn-Key CNC system for true 2 axis X and Z control with computer variable spindle encoder control and safety limit switches. X and Z axis ball screws with pre-loaded ballnuts and motors installed as direct drives. The user-friendly windows Master operating software is included with user’s manual. Standard 1340 lathe items also included: Motor Pulley, Backplate for Three-Jaw Chuck, Backplate for Four-Jaw Chuck, 3-Jaw Scroll Chuck, 4-Jaw Independent Chuck, Center Sleeve Bushing MT-5 to MT-3, Change gear for threading (needed for manual option threading only), Tool Post Wrench, 4 Way Tool Post, Steady Rest, Follow Rest, Faceplate 11.75″, Machine Stands with Center Kick Plate and Chip Pan. One Year Warranty. Life-long tech support for as long as company owns this equipment. Power requirements: 115vac for controller. 208, 220-240vac, single phase for spindle motor.

Add any of the following CNC Masters milling machines to your CNC Lathe Deluxe Package for a bundle combo package deal:

CNC Supra Milling Machine Deluxe Package at listed price. Take off $850.00*!

CNC Baron Milling Machine Deluxe Package at listed price. Take off $475.00*!

CNC Jr Milling Machine Package A, A1, B, or B1 at listed price. Take off $300.00*!

*This combo package “only” applies to the above package deals and cannot be combined with any other offer. This deal “only” applies to the combined purchase of mill and lathe at the “same time.” There are no substitutions.

CNC Accessories

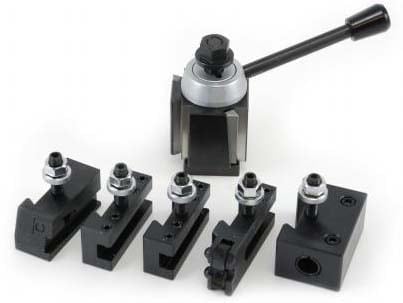

Wedge-type Quick Tool Post with 5 holders Set. Quickly change out your cutters while retaining the cutter edge at the center of your stock. No more need to shimmy and properly align your cutters to the center of your stock with this Quick Change Tool Post. The kit comes to you with a block that you will need to machine into a custom T-Nut to fit the size of your T-Slot…..$395.00.

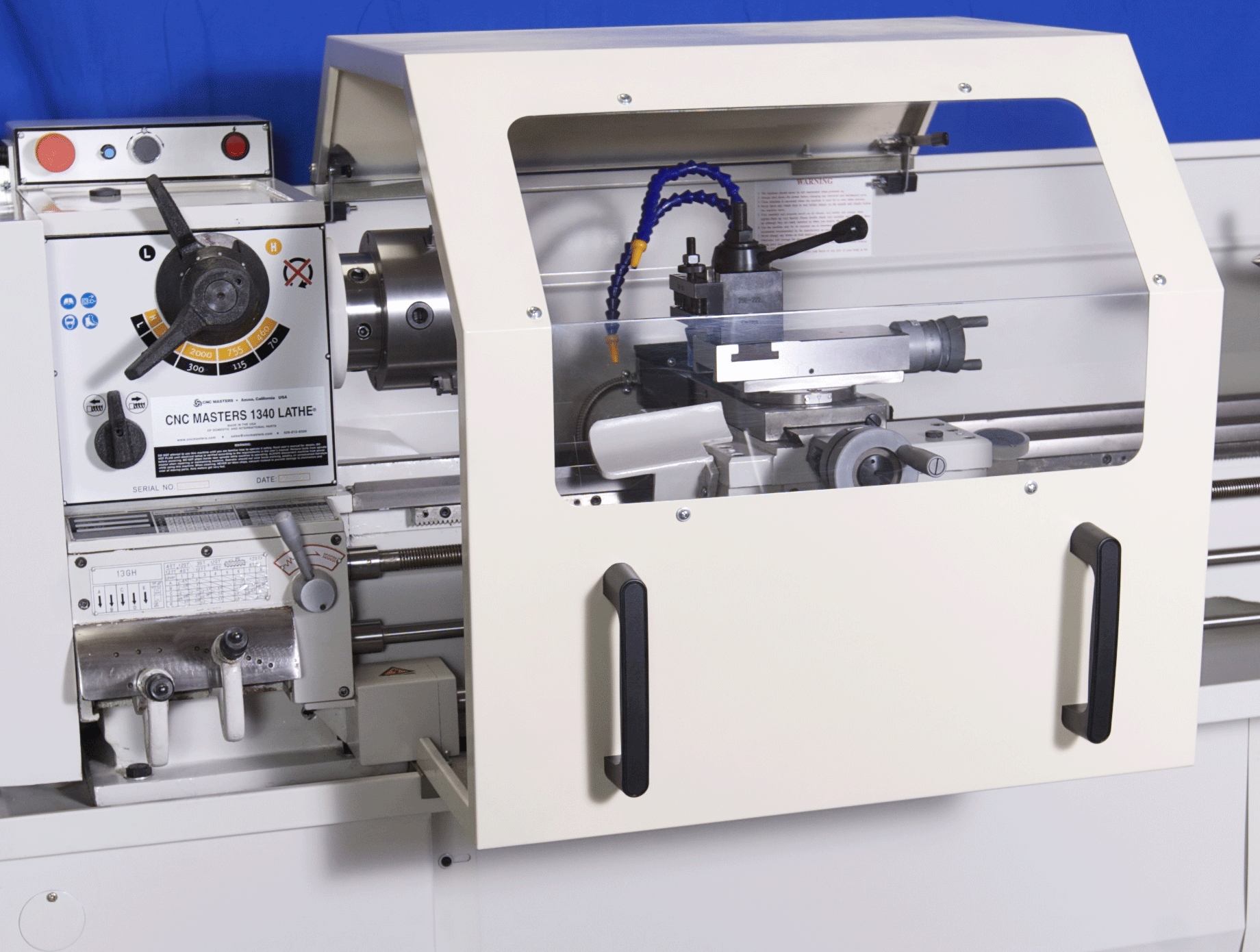

Sliding Splash Guard which can easily be removed or locked into place with two built-in levers. Keep debris and splash enclosed during your CNC lathe operation. 28″ long, and plenty of space for parts on a 13″ swing.

Computer Control Coolant Kit. Keep your cutters from quickly dulling out. Keep debris from welding on your cutters with coolant control. You can operate coolant on/off or through M-codes on the Master operating Software. This system comes to you with a pre-drilled hole and strainer mounted at the center of your chip pan. Also included: funnel, hoses, container, magnetic base with flex nozzles, and submersible pump

Software Packages

VisualMill “CAM” Software is ideal for the rapid-prototyping, hobby and educational markets where ease of use is a paramount requirement. Packed with sufficiently powerful manufacturing methods, easy to use package is not only effective but also attractively priced for the budget conscious or entry level buyer.
(WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.)

VisualMill 4th Axis CAM ADD-ON will allow you to create g-codes for the 4th axis that comes with your cnc mill or retrofit kit. If you plan to use a 4th axis rotary table, then purchasing this add-on will be a worthy investment…. (Must be bundled with VM 3 Axis)

RHINO 4.0 “CAD” Software features a 3-D modeling system that can create, edit, analyze, and translate NURBS curves, surfaces, and solids in Windows. VisualMill can read Rhino’s native format files (.3dm) directly (without translation) and generate cutter paths accurately and efficiently, ensuring 100% direct translation capabilities. (Definitely one of the best CAD programs in the market today! Easy to learn and use–and design the intense detailed parts.)
WE ARE WILLING TO COMPETE IF YOU FIND A BETTER DEAL.
