CAD/CAM Software

CAD-CAM softwares are an integral part of the CNC Masters Machinery and of the CNC world of machining in general. Yes, you can use simple commands found on the Master operating software to program your CNC Masters machines, but if you are planning to machine a complex design then investing in a CAD-CAM software will be an invaluable tool as much as your CNC Masters machinery. 3D design and translation of your drawing into G-codes will save you extensive downtime instead of writing your g-codes files from scratch and reducing mathematical errors in design.

Check out this quick Video Demo how CAD and CAM software creates your tool path programs to machine your applications on your CNC MASTERS machinery.

We offer the following CAD CAM Soft wares that work well with your CNC Masters machinery and are competitively priced!

VISUALTURN CAM – made for CNC Lathe applications

Powerful Programming System for your CNC MASTERS 1440 Lathe

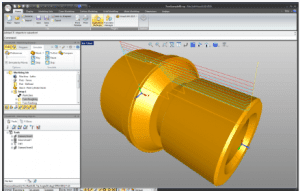

VisualTurn: This new programming system is used to program 2-axis CNC turning centers or lathes. Includes powerful turning machining methods to handle complex programming tasks. Just as in VisualMill CAM, the easy interface, allows a user to machine a part in very short time. One of the best value packed lathe products available today. Available file imports include: IGES, Rhino, STEP, Dxf, Dwg, STL, VRML, RAW, Point Cloud.

Click here for a free demo of VisualTurn CAM.  Simply choose VisualCAD/CAM.

The table below summarizes the various features found VisualTURN:

CAD CREATION EDITING TOOLS

  • 2D Cad Creation
  • 3D Cad Creation (Limited)
  • Layers
  • Unlimited Undo
  • Clipboard
  • True Type Font Text
  • Measurement Tools

TWO AXIS TURNING

  • Roughing
  • Finishing
  • Groove Roughing
  • Groove Finishing

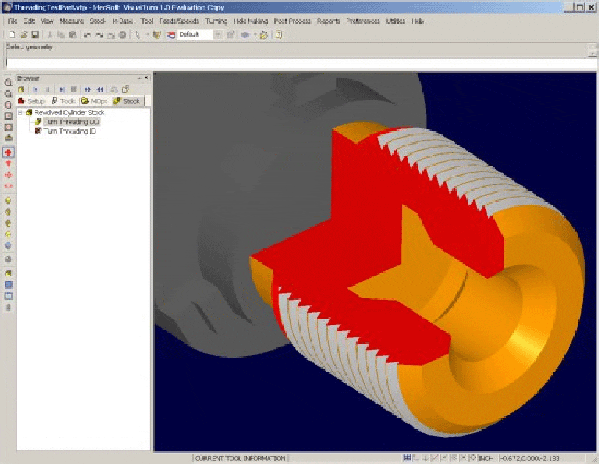

  • Threading
  • Follow Curve
  • Parting Off

HOLE MAKING

  • Drilling
  • Tapping
  • Boring
  • Reverse Boring

TOOLPATH SIMULATION

  • Toolpath Animation
  • Cut Material Simulation
  • Part to Stock Comparison

POST-PROCESSOR GENERATOR

  • User customizable post-processor generator

X-PERT DNC

  • Direct numerical control

POST-PROCESSOR GENERATOR

  • G-Code Analysis Verification Tool
